LXOX SERIES

OUTDOOR – LXOX SERIES

Sorry, your ID is maybe not correct. And please make sure that your selected element is developed with Swiper.

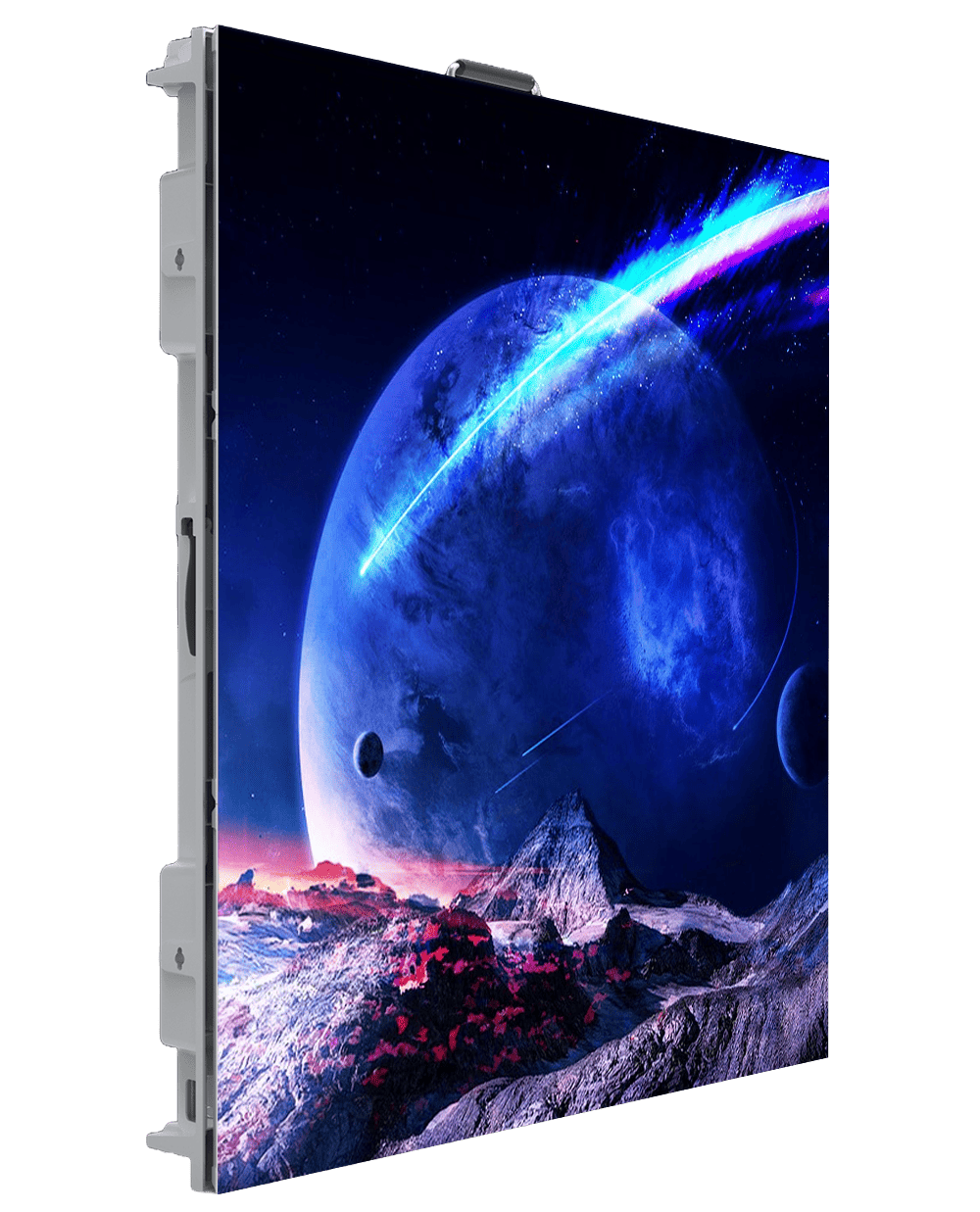

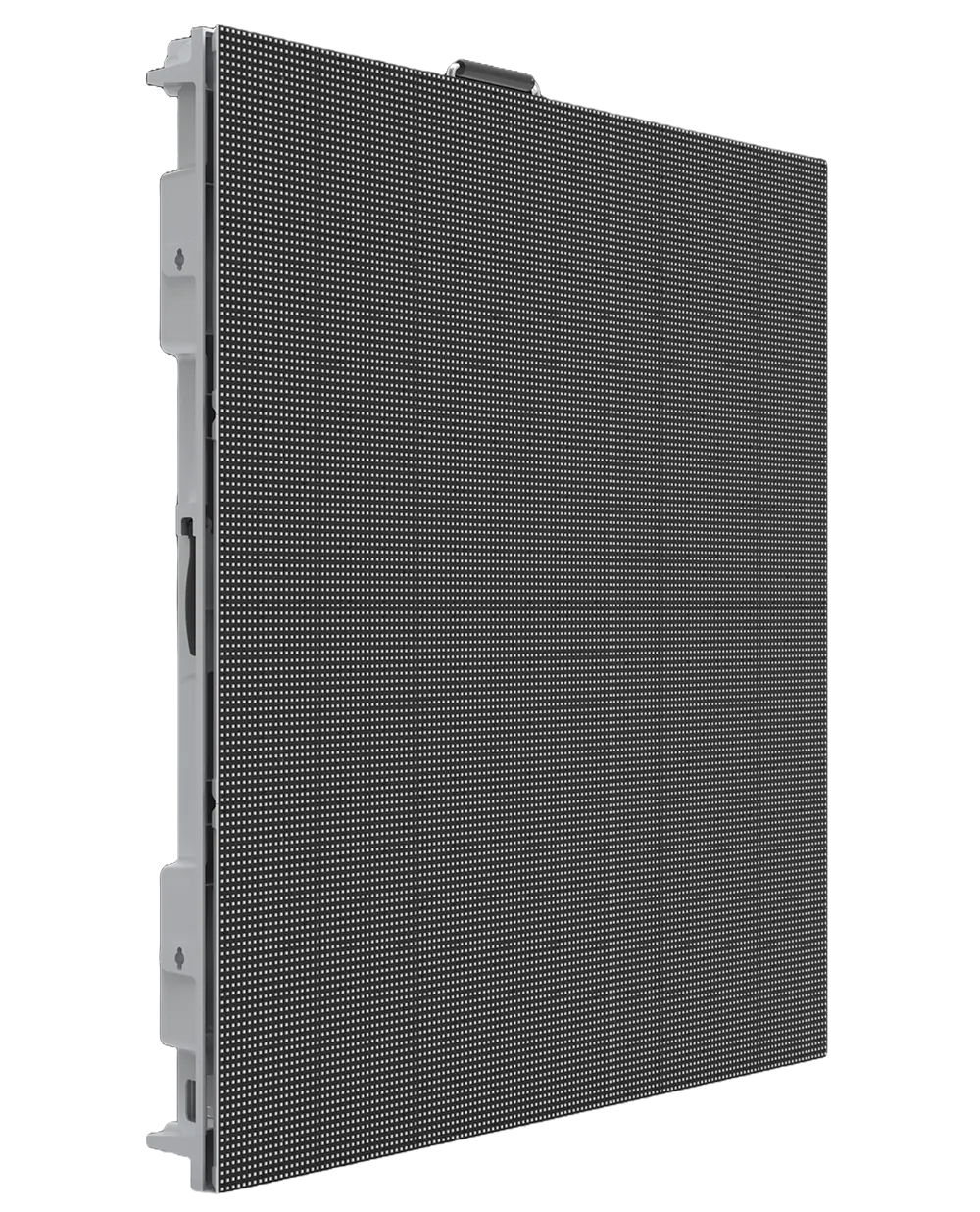

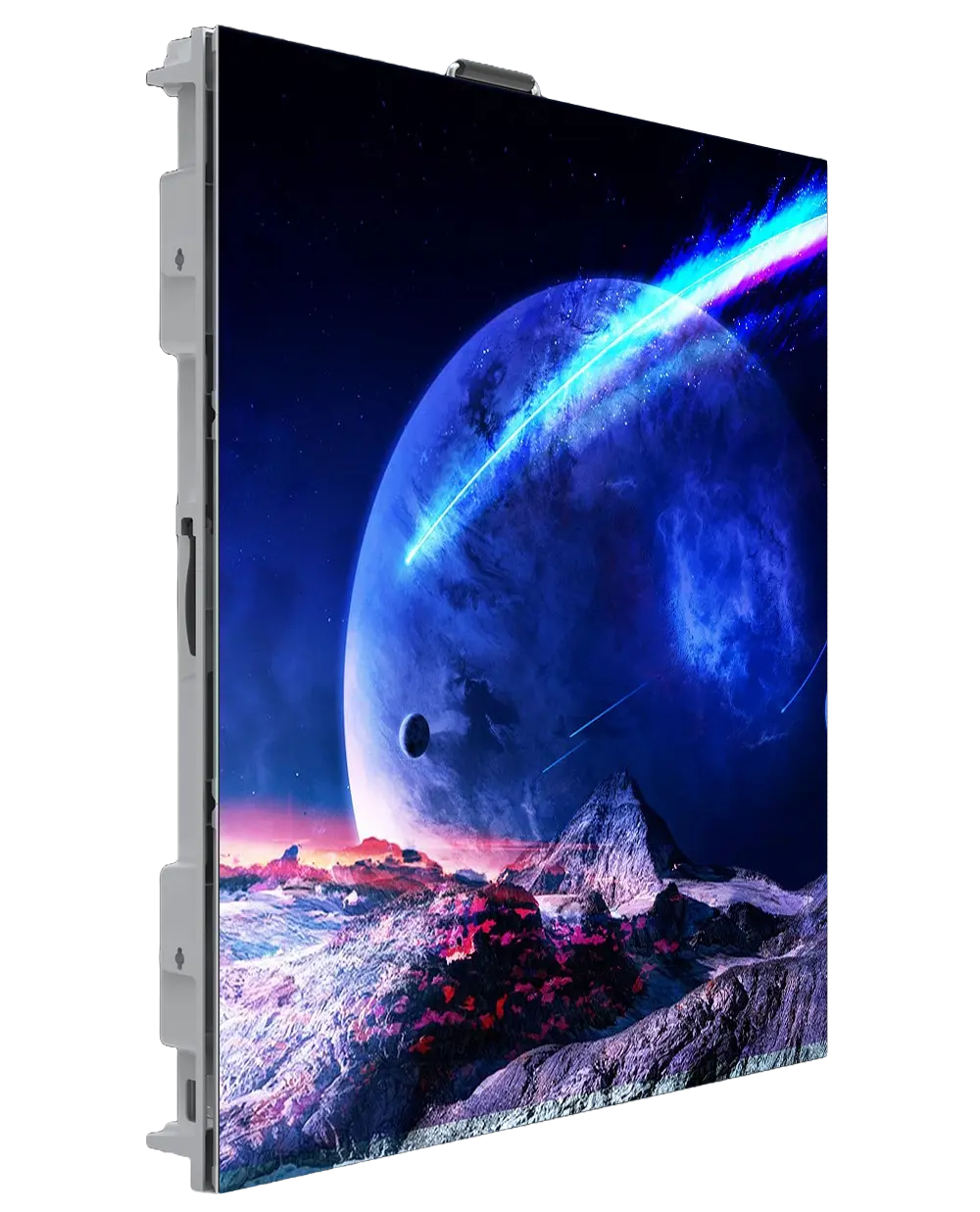

LXOX SERIES

  • Dual voltage LED Displays
  • Dimension: 960 x 960mm
  • Pixel Pitch: 4mm, 6.67mm, 10mm
  • 10,000 Nits Ultra High Brightness

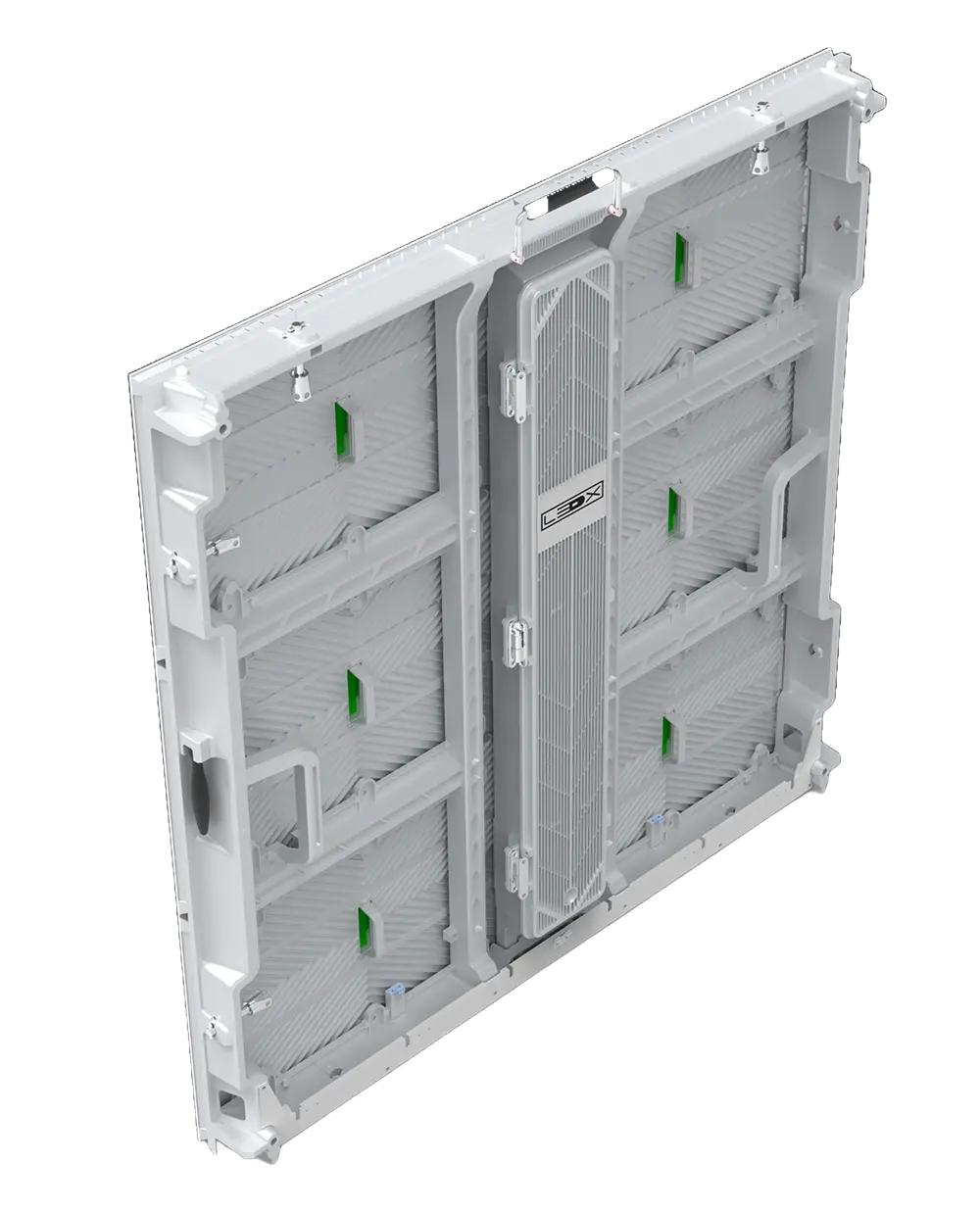

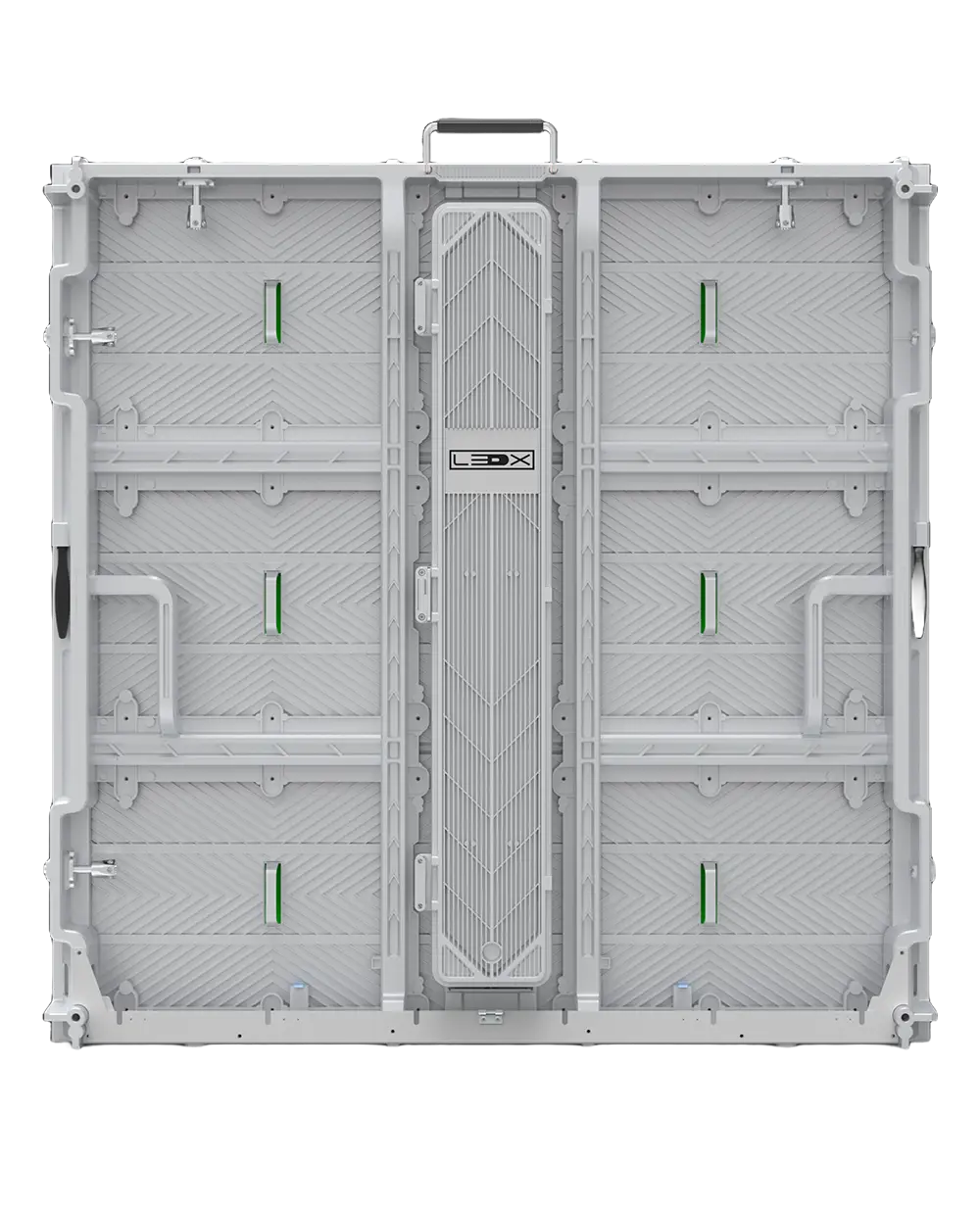

  • Advanced Die-cast Aluminum Chassis
  • Excellent heat dissipation
  • Power saving design
  • Front & Back Access

Features

SPECIFICATIONS

DOWNLOAD

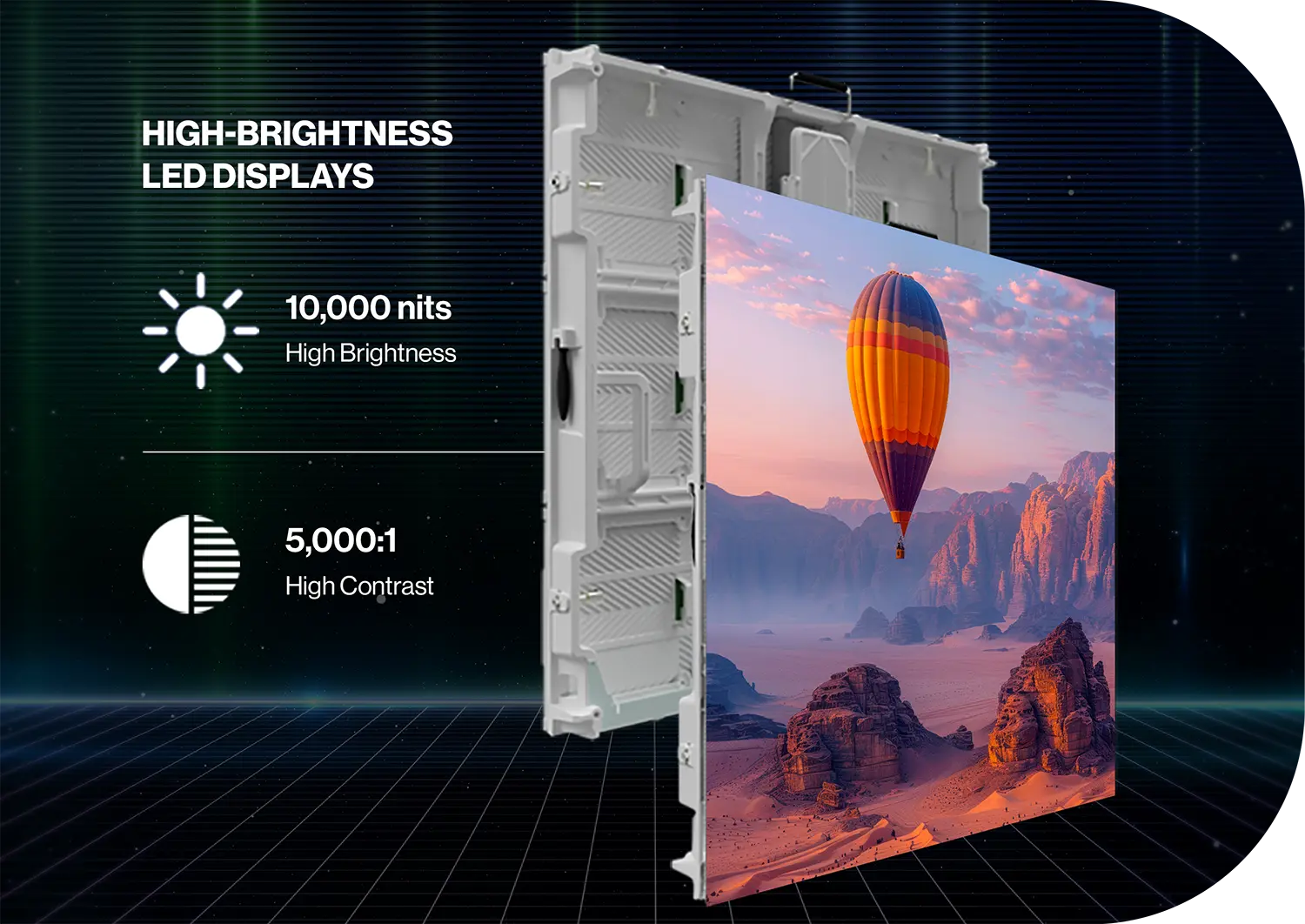

Bright, Reliable, and Built to Last

High-brightness LED displays with die-cast aluminum housing for maximum daytime visibility, easy installation, and long-lasting, reliable performance.

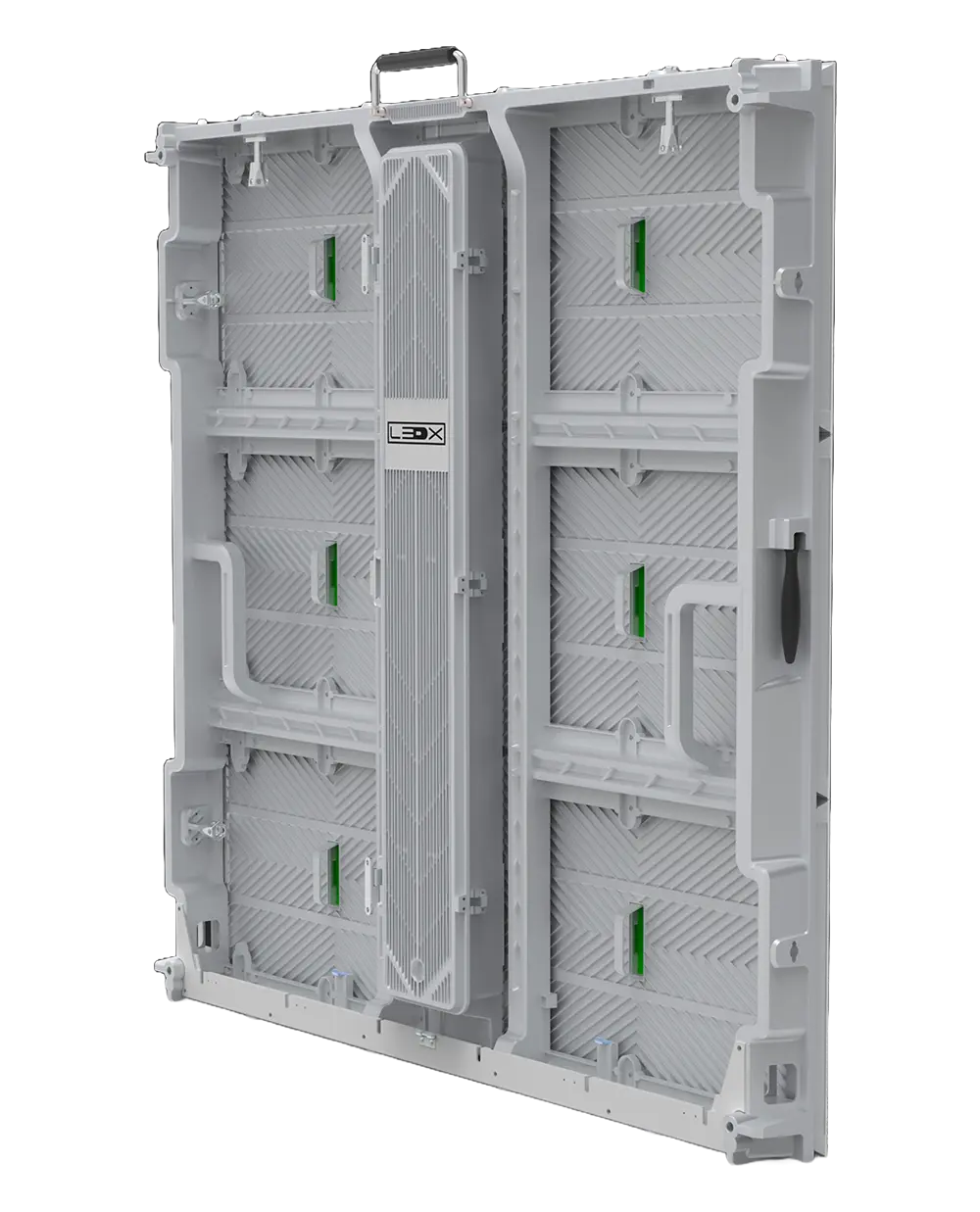

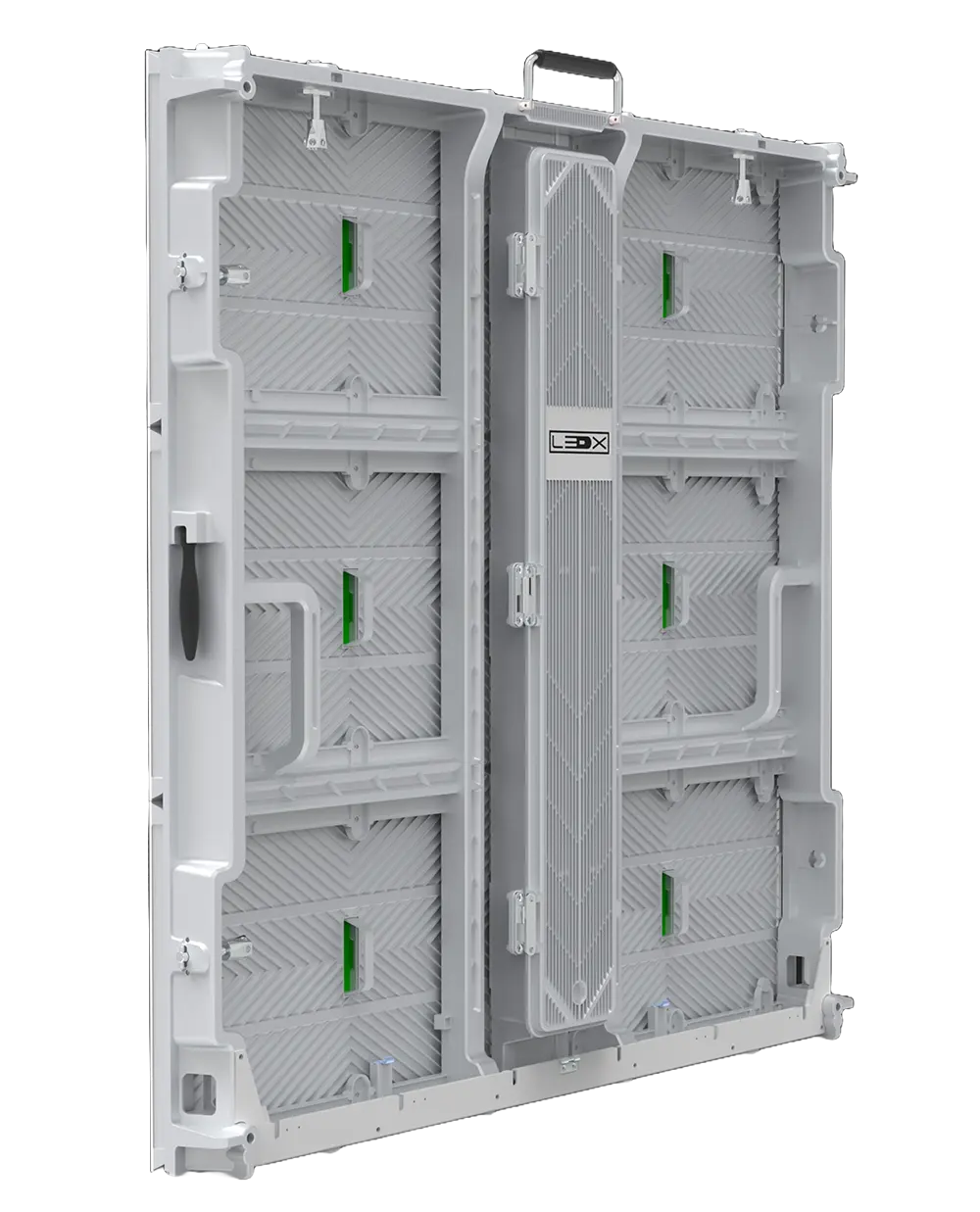

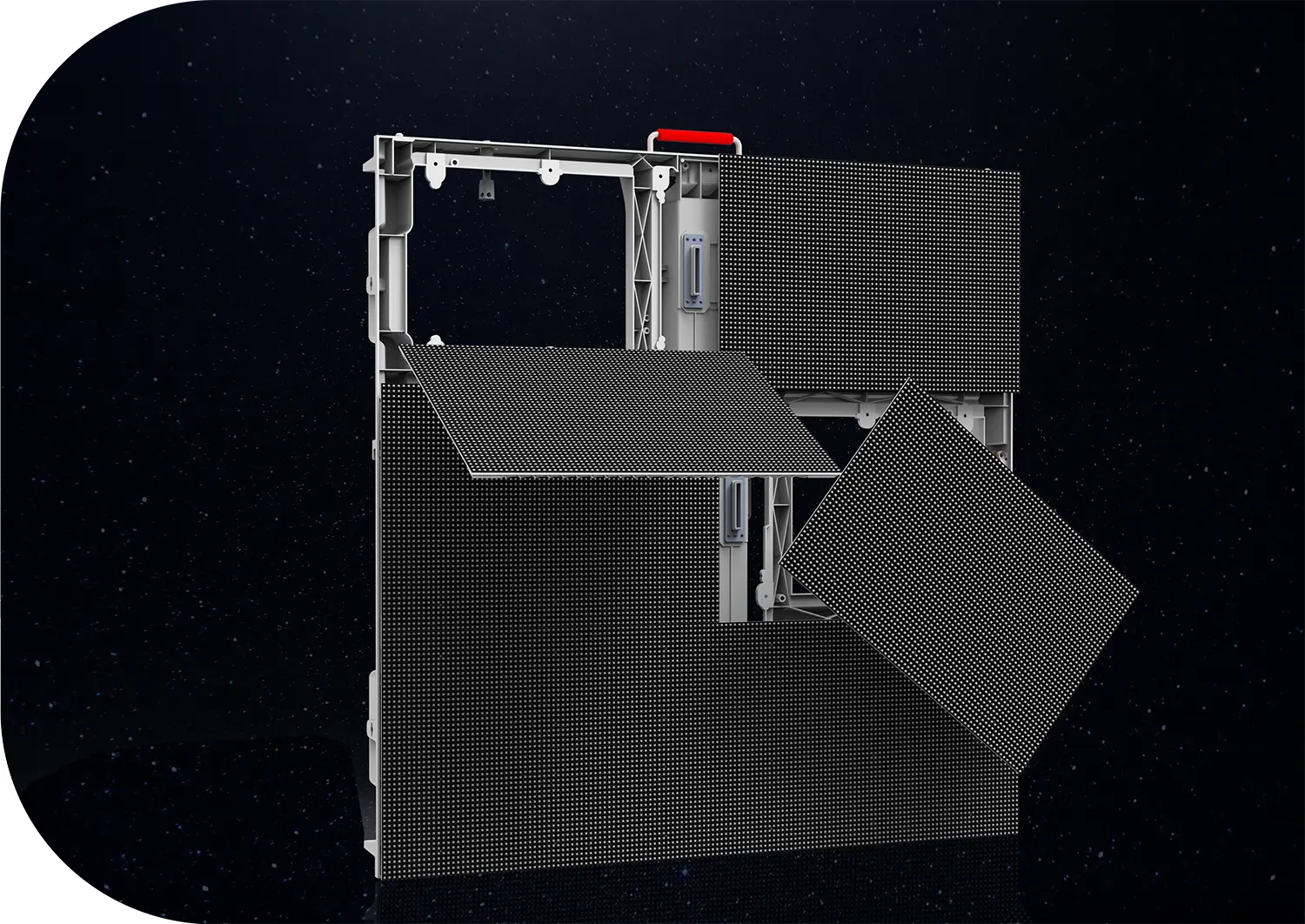

Cable free modules

All cables are neatly routed through the bottom of the cabinet, ensuring a clean, clutter-free appearance while minimizing the risk of accidental disconnection.

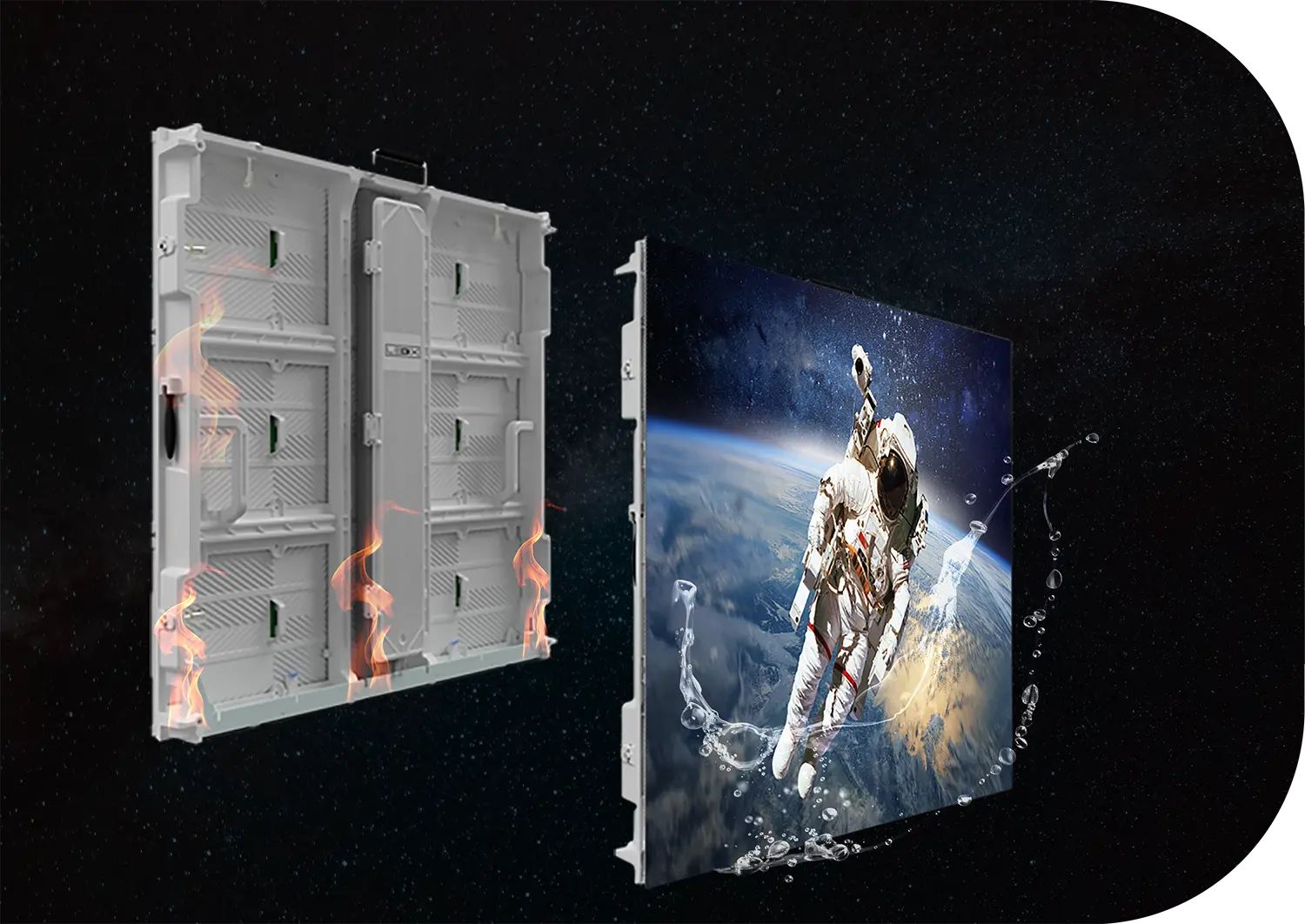

IP66 Rated – Front & Back Protection

With IP66 rating on both sides and rugged weatherproof cabinets, these LED displays are built to resist dust, rain, and extreme conditions.

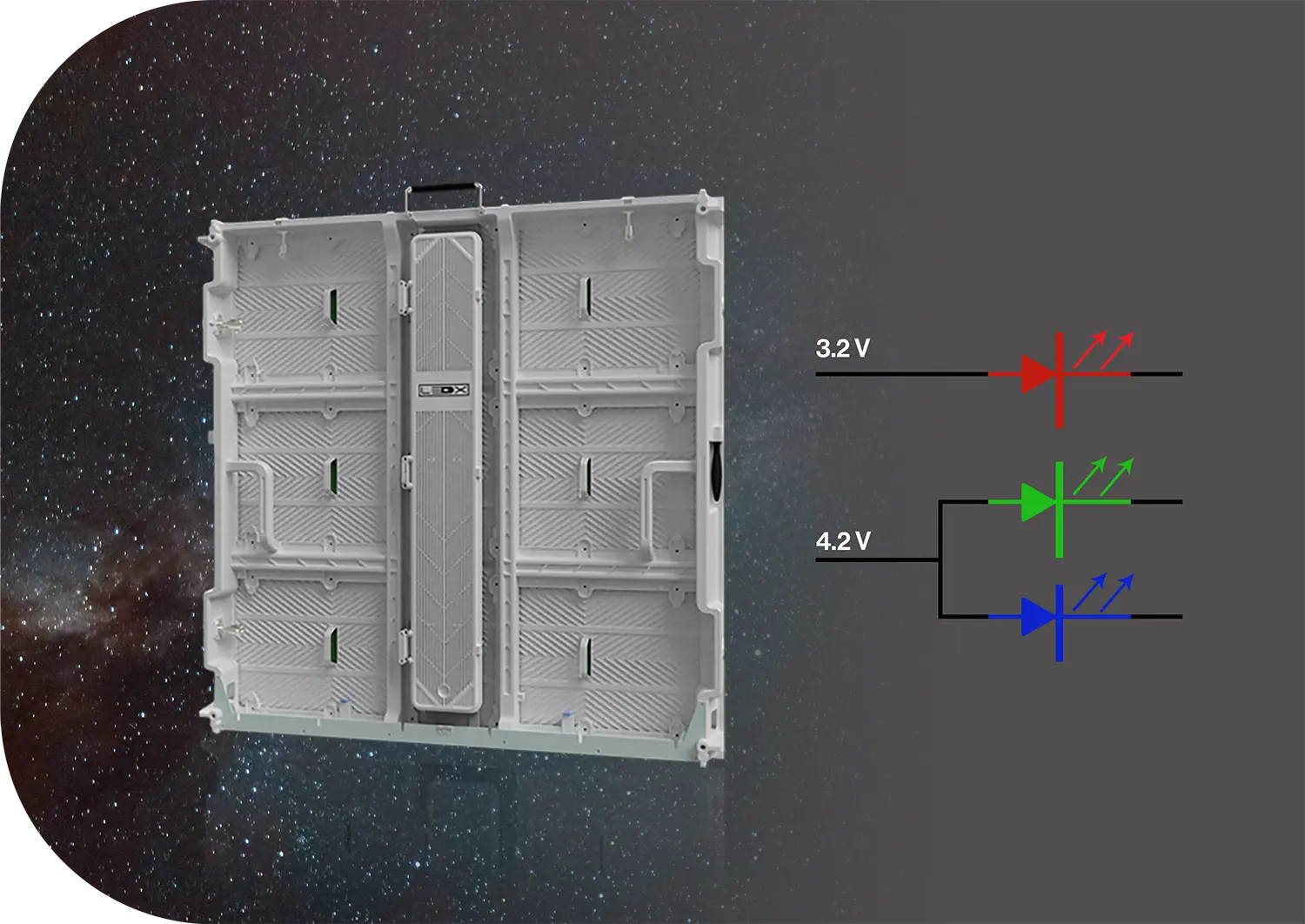

Maximum Efficiency with Dual voltage LED

Using 3.2V for red and 4.2V for green and blue LEDs—compared to the traditional 5V across all—our technology helps save power consumption by at least 30% without compromising brightness.

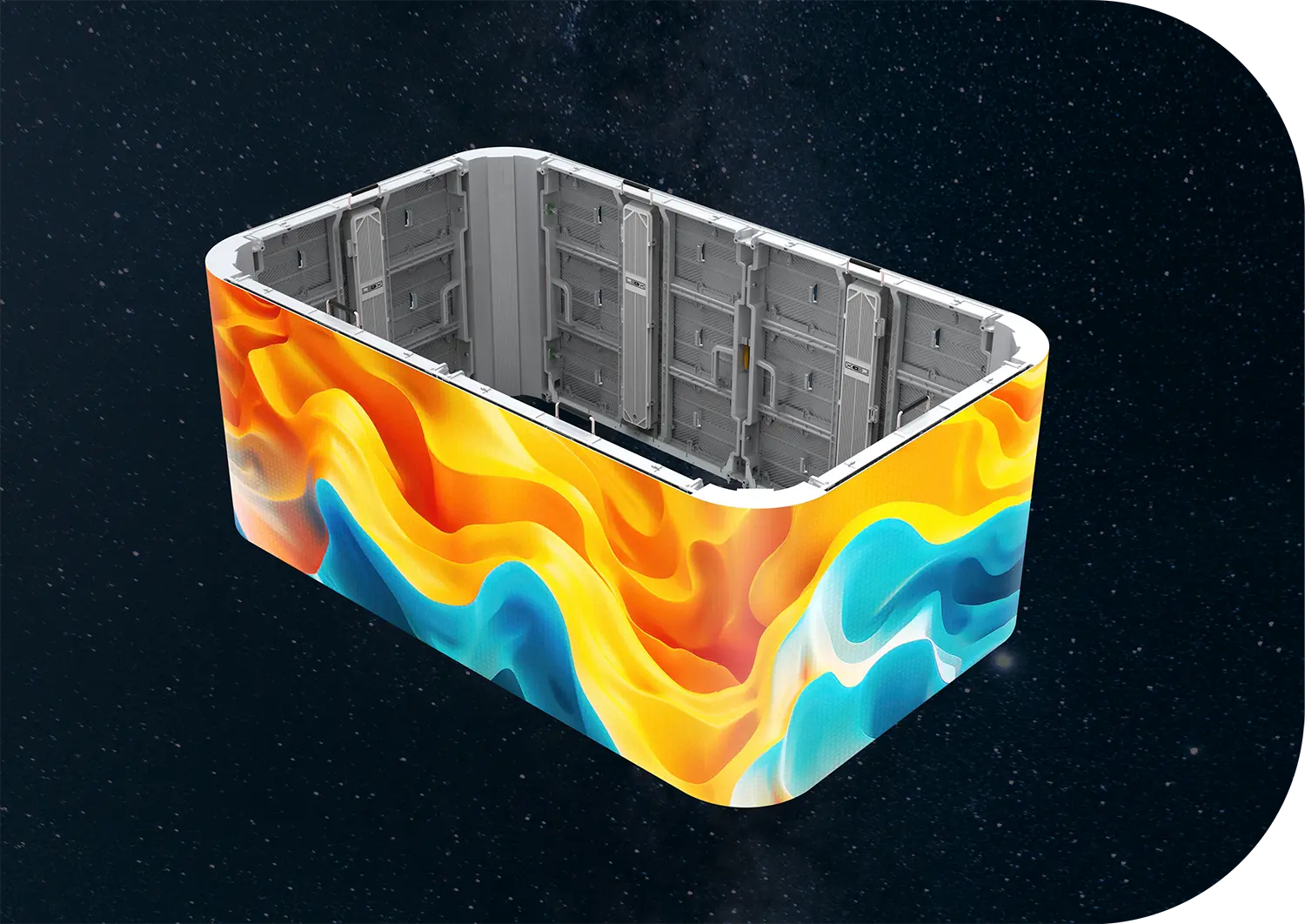

Perfectly Seamless. Immersive in Every Angle

Engineered for curves and L-shaped corners, our seamless corner cabinets enable stunning naked-eye 3D visuals from every angle.

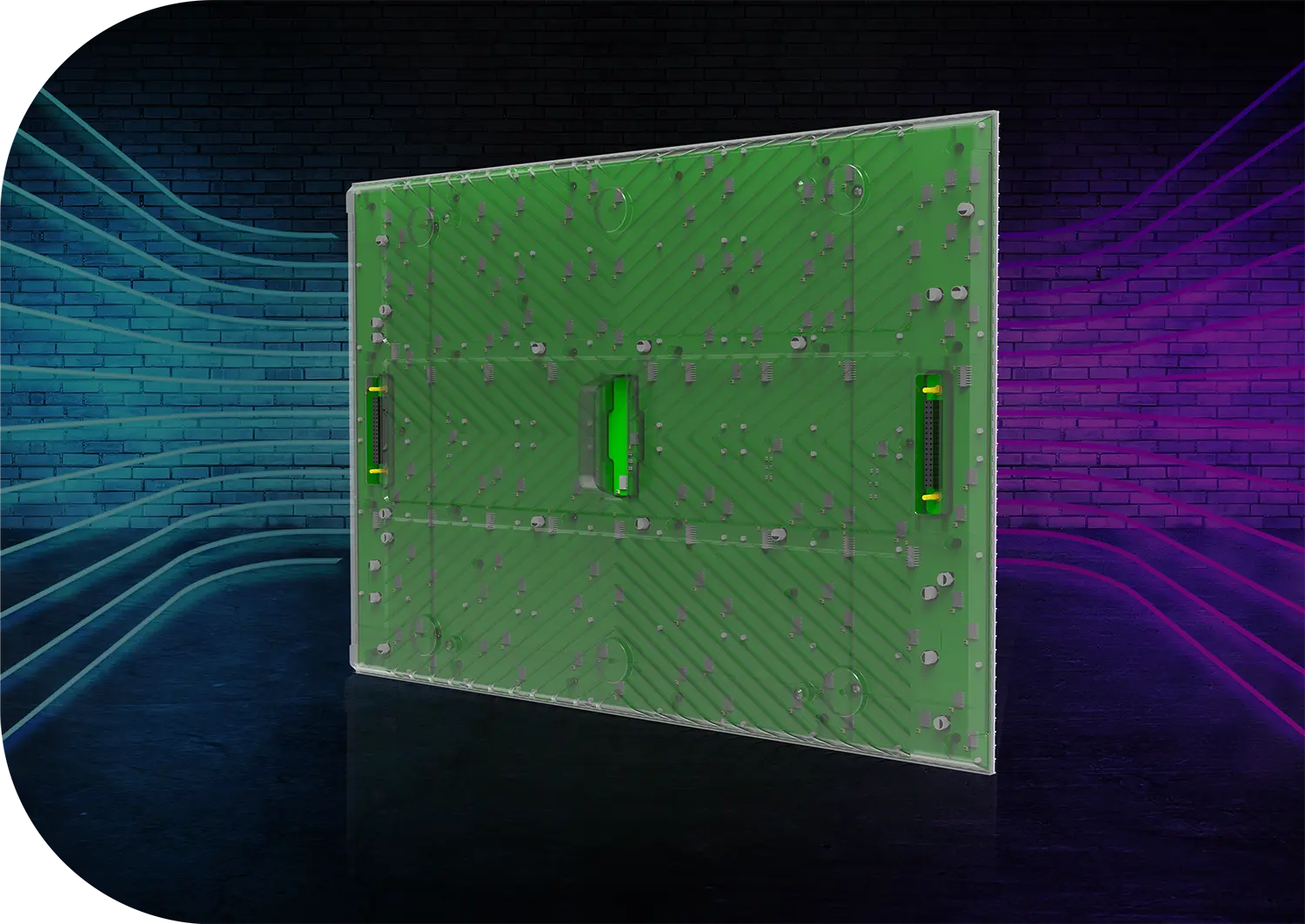

Smarter Power. Zero Wastage

Powered by intelligent distribution, energy-saving ICs, and high-efficiency PFC supplies for peak performance with minimal energy loss.

SPECIFICATIONS

Model NameLXOX - 4LXOX - 6.67LXOX - 8LXOX - 10
Pixel Pitch (mm)4 mm6.67 mm8 mm10 mm
Cabinet Dimension (W x H x D) mm960x960960x960960x960960x960
Weight (kg/m²)26262626
Service AccessBackBackBackBack
Maximum Brightness (nits)50005000 / 8000 / 100005000 / 8000 / 100005000 / 8000 / 10000
Viewing Angle160 x 160160 x 160160 x 160160 x 160
Contrast Ratio5000:01:005000:01:005000:01:005000:01:00
Max Power (Watts/m²)550496460460
Refresh Rate (Hz)≥3840≥3840≥3840≥3840
Ingress ProtectionFront IP66 / Back IP66Front IP66 / Back IP66Front IP66 / Back IP66Front IP66 / Back IP66
Cabinet TypeDie-Cast AlDie-Cast AlDie-Cast AlDie-Cast Al
Data Processing14-16 Bit14-16 Bit14-16 Bit14-16 Bit

Comes in Multiple variants, standard and high brightness
These specifications are standard and can be customized. May change without prior notice.

DOWNLOAD BROCHURE

Why choose LED-X?

Expert R&D team enabling Custom Engineering & Research Backed Co-Innovation to drive robust product innovation.

Rigorous Quality Control Process

Eliminate Waiting Times: Enjoy prompt access to products without delays.

Reduce Supply Chain Dependencies: Minimize reliance on China-based suppliers.

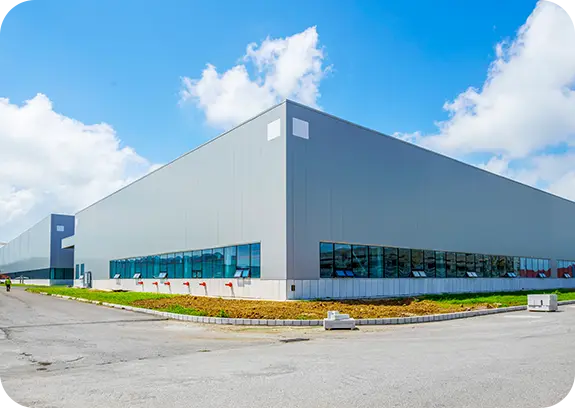

Join India's Premier LED Screen Manufacturer: Be part of the nation's first and only LED screen production company.
