ES FINE PITCH - LXSX SERIES

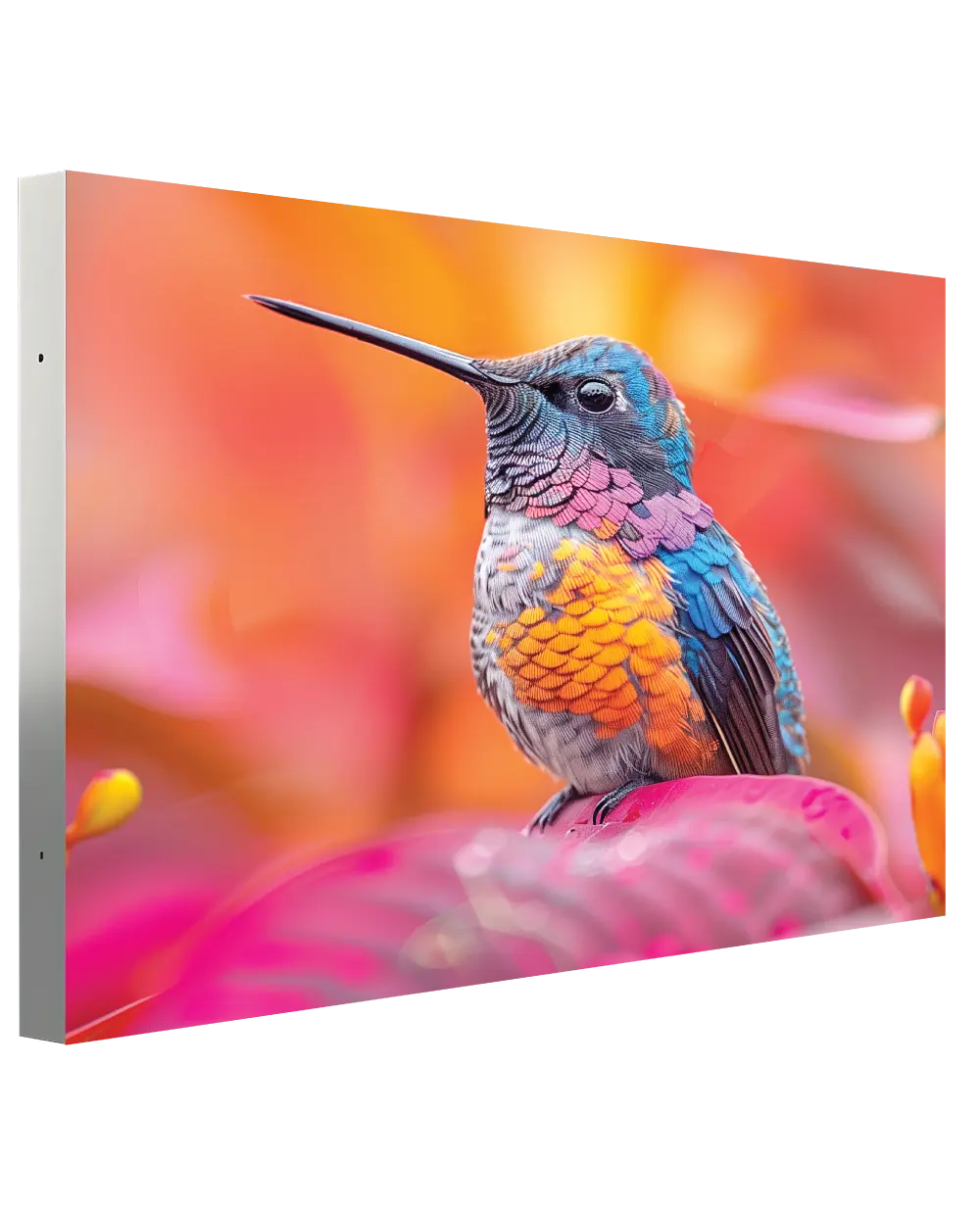

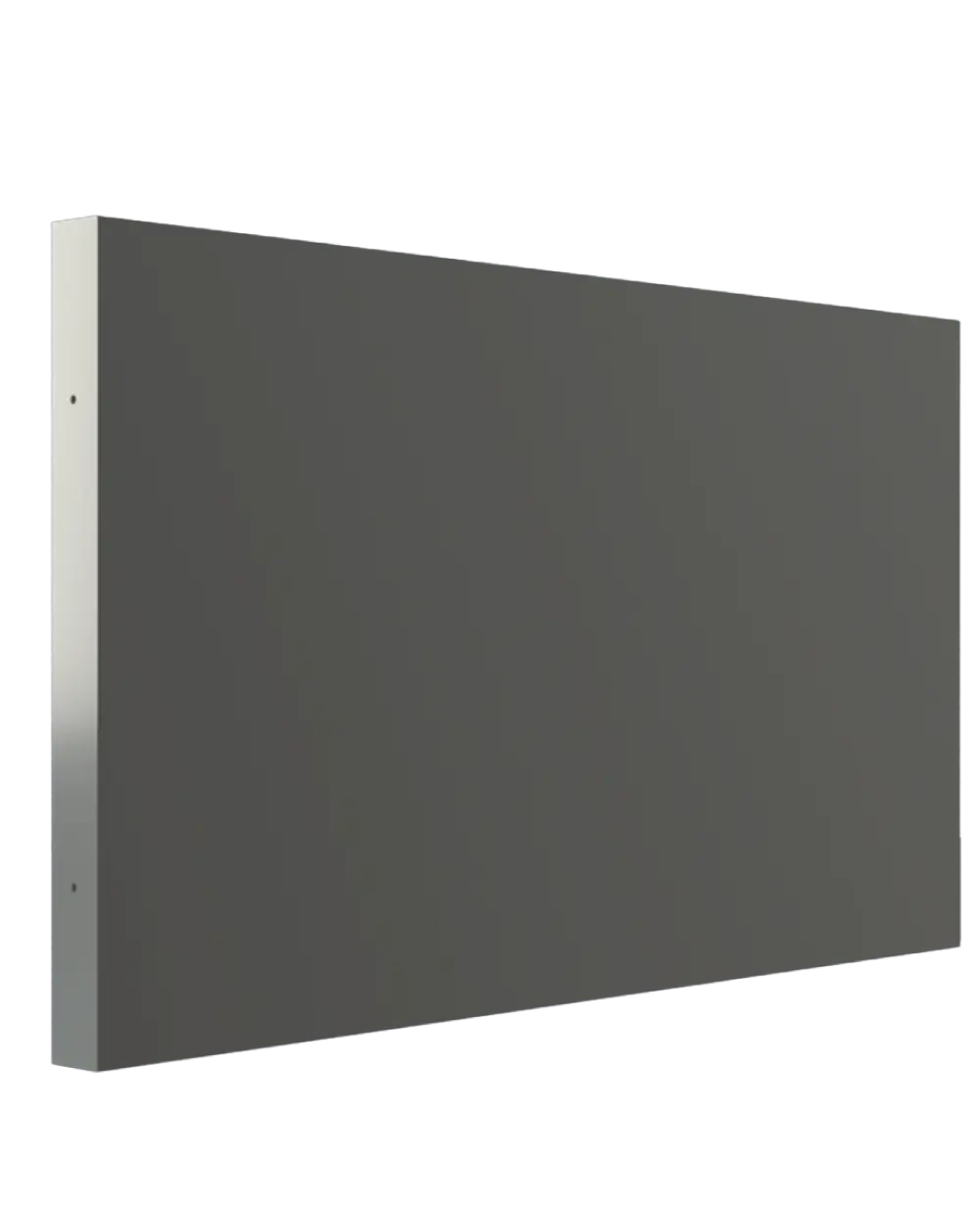

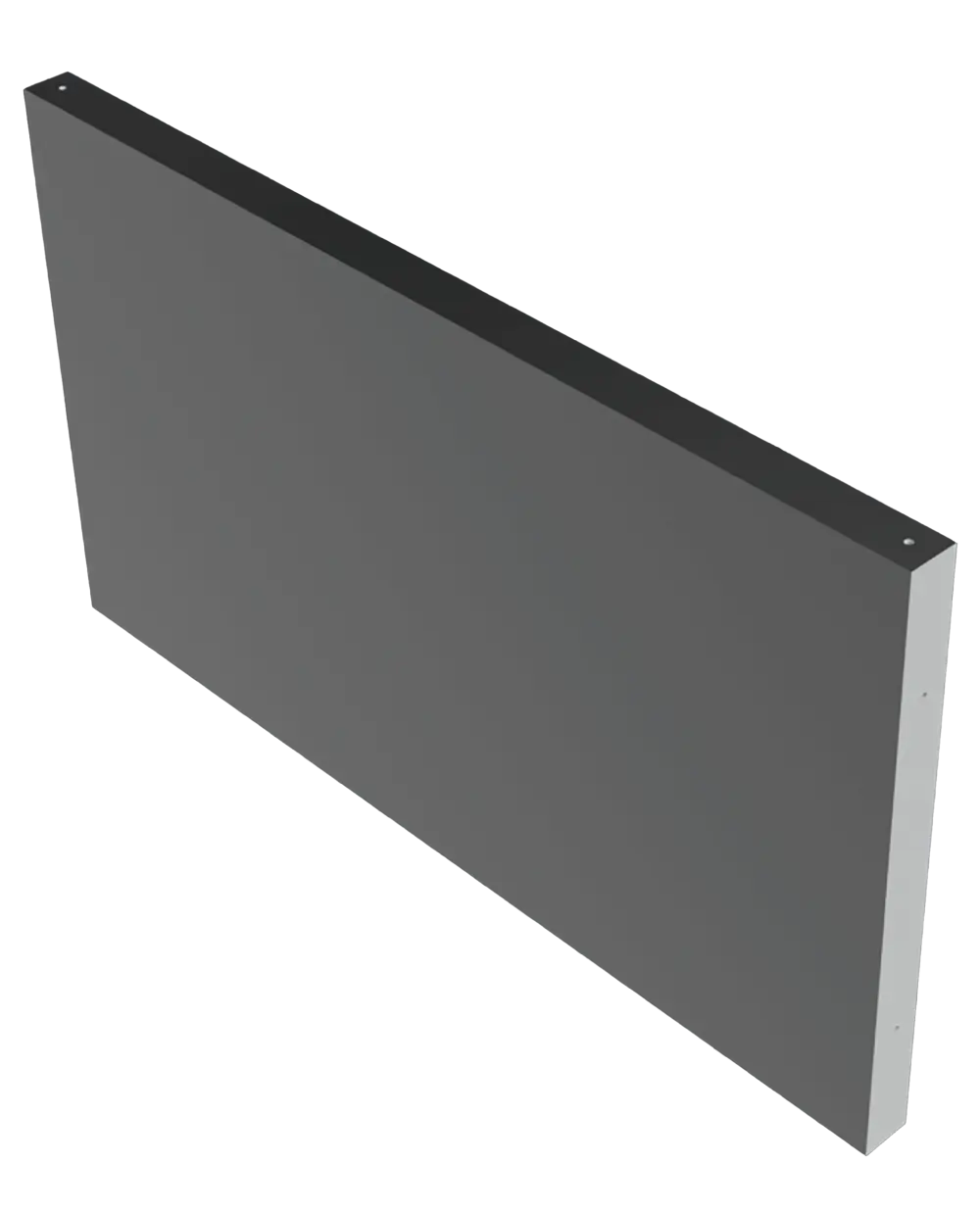

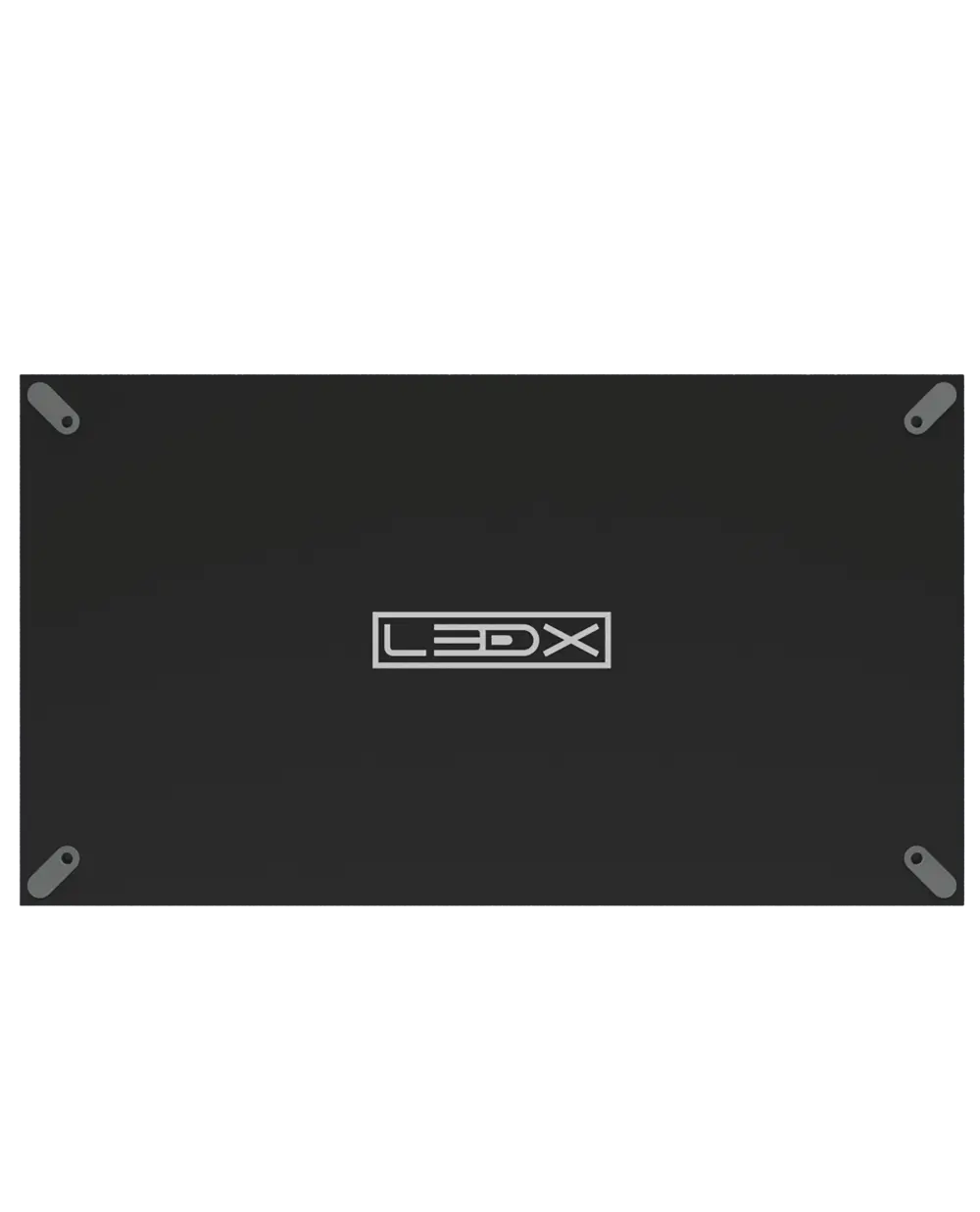

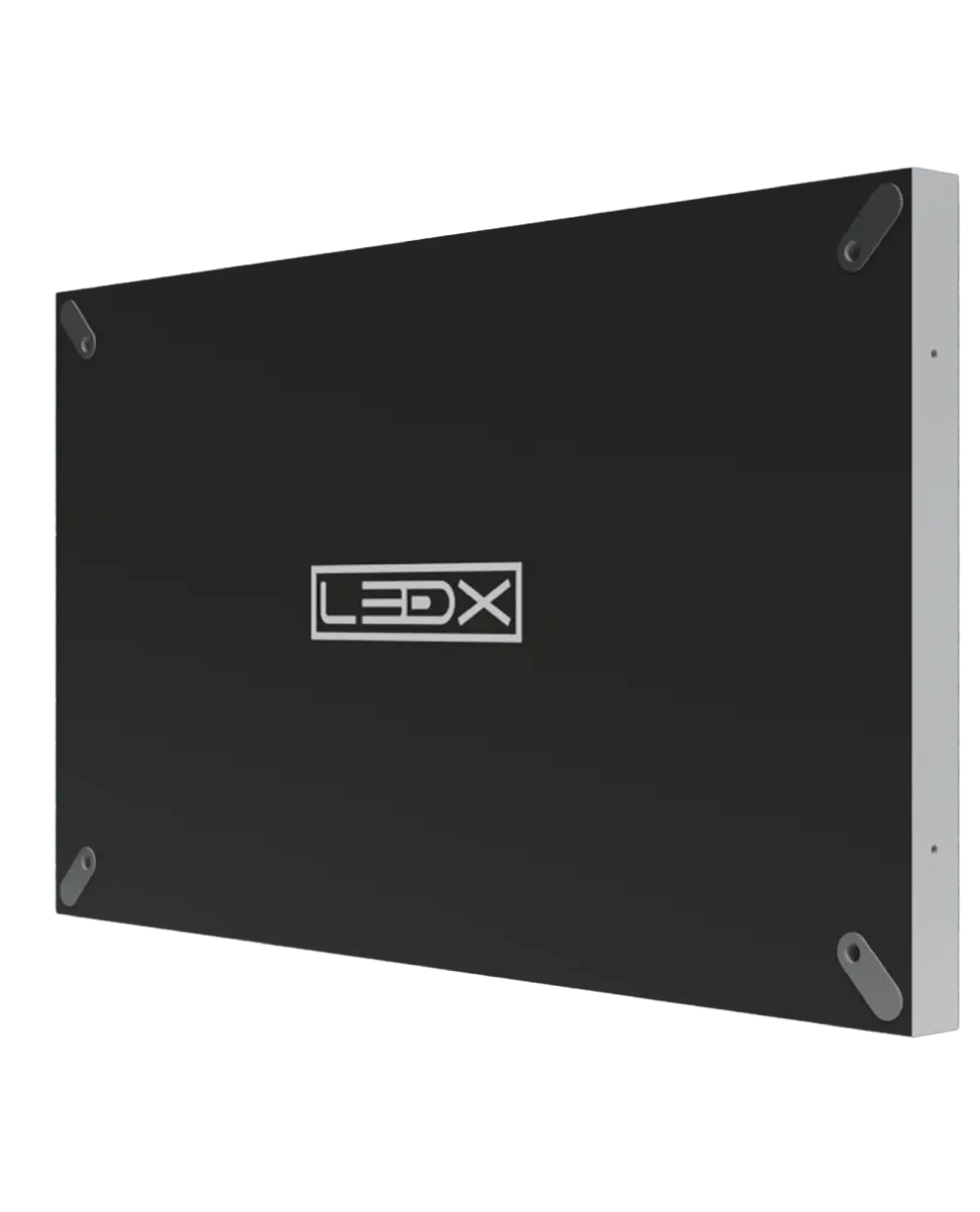

LXSX SERIES
- COB LED Displays
- Dimension: 600 x 337.5mm
- Pixel Pitch: 0.78mm, 0.84mm, 0.9mm, 1.25mm, 1.56mm
- Flip Chip COB
- Deep Black Technology
- Multi-layer Calibration
- True Color
- Power Efficiency with Common Cathode Technology
Deep Black Technology
Deep black technology guarantees vivid and realistic images from every angle, offering excellent contrast and anti-reflection performance.

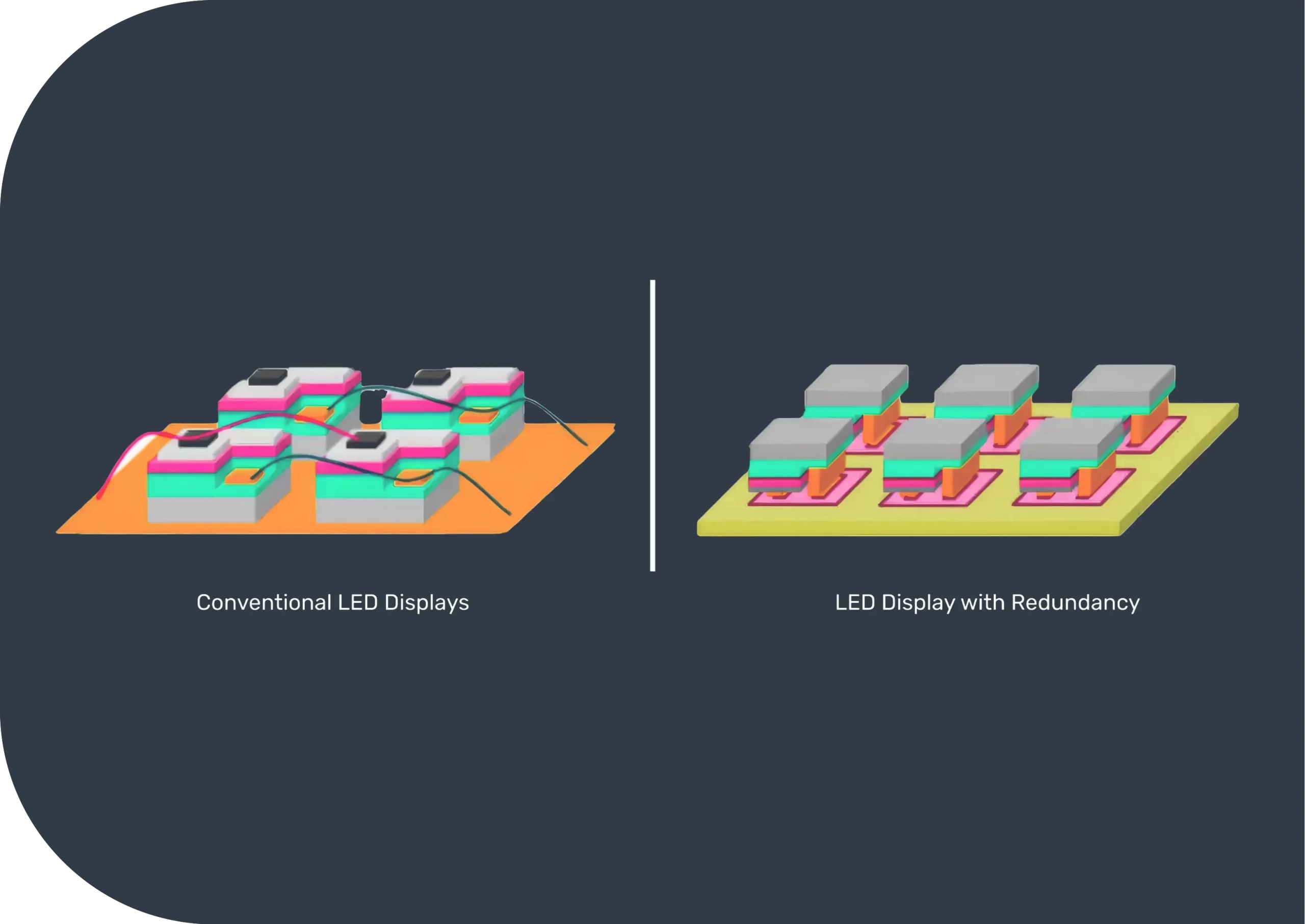

Flip Chip COB
Offers Flip Chip COB technology for RGB LEDs, enhancing thermal control, electrical efficiency, pixel density, and color consistency. Delivers durable, high-quality visuals with HDR10-level display performance.
Multi-layer Calibration
Delivers flawless visuals through multi-layer calibration, ensuring precise color uniformity of up to 97%.
True Color
With the ability to emit trillions of colors, these LED displays redefine the boundaries of visual brilliance.
SPECIFICATIONS
| Model Name | LXSX - 0.78 | LXSX - 0.84 | LXSX - 0.9 | LXSX - 1.25 | LXSX - 1.56 |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 0.78 mm | 0.84 mm | 0.9 mm | 1.25 mm | 1.56 mm |
| Cabinet Dimension (W x H) mm | 600 x 337.5 | 806.4 x 453.6 | 600 x 337.5 | 600 x 337.5 | 600 x 337.5 |
| Weight (kg/m²) | 21 | 23 | 21 | 21 | 21 |
| Service Access | Front | Front | Front | Front | Front |
| Maximum Brightness (nits) | 600 | 600 | 600/1000 | 600/1000 | 600/1000 |
| Viewing Angle | 160 x 160 | 170 x 150 | 160 x 160 | 160 x 160 | 160 x 160 |
| Contrast Ratio | 20000:1 | 20000:1 | 40000:1 | 40000:1 | 40000:1 |
| Max Power (W/m²) | 340 | 480 | 330 | 330 | 270 |
| Refresh Rate (Hz) | ≥ 3840 | ≥ 3840 | ≥ 3840 | ≥ 3840 | ≥ 3840 |
| Ingress Protection | Front IP60 / Back IP60 | Front IP60 / Back IP60 | Front IP60 / Back IP60 | Front IP60 / Back IP60 | Front IP60 / Back IP60 |
| Cabinet Type | Die-Cast Al | Die-Cast Al | Die-Cast Al | Die-Cast Al | Die-Cast Al |
| Data Processing | 14–22 Bit | 14–22 Bit | 14–22 Bit | 14–22 Bit | 14–22 Bit |
Working in collaboration with a large Chinese Manufacturing Facility.
