ES INDOOR - LXIX SERIES

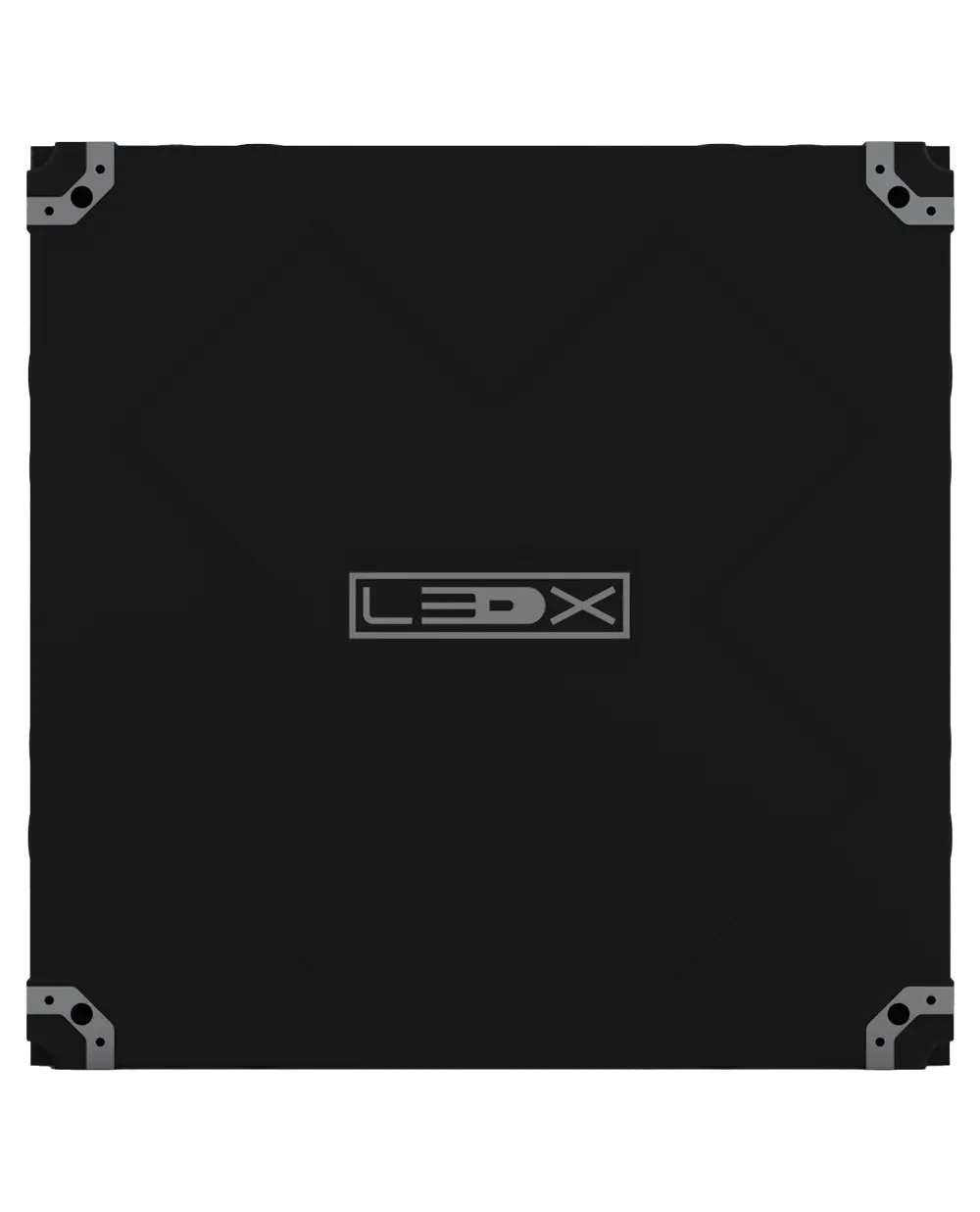

LXIX SERIES
- Die-Cast Lightweight LED Displays
- Dimension: 500 x 500mm
- Pixel Pitch: 1.83mm, 2.5mm, 2.98mm
- Magnetic design
- Multiple mounting options
- Front installation and service
- Support power and signal redundancy
- Universal HUB for all pixel pitch

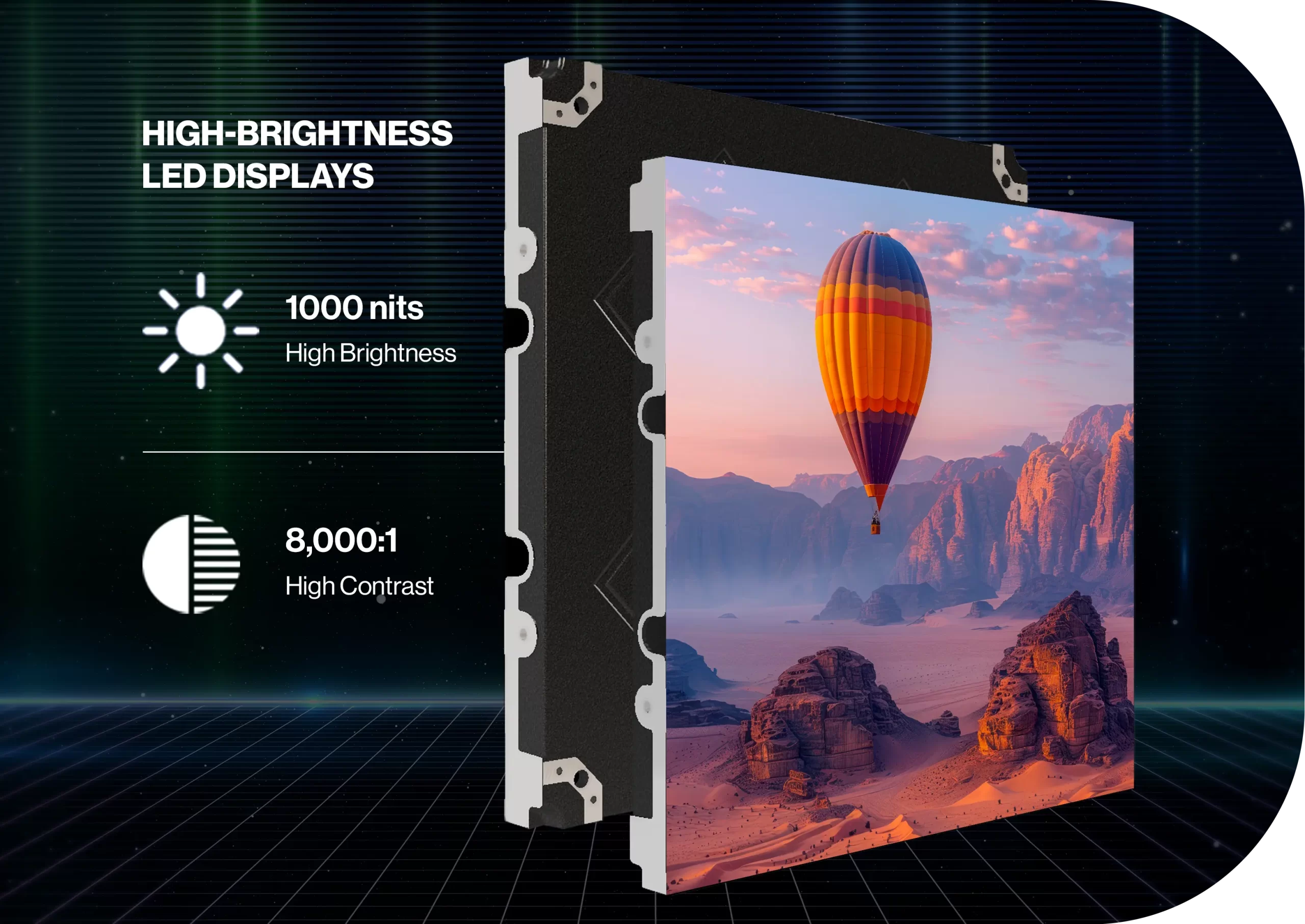

High Brightness LED Display
With brightness up to 1000 nits, these LED displays remain clearly visible even under direct sunlight.

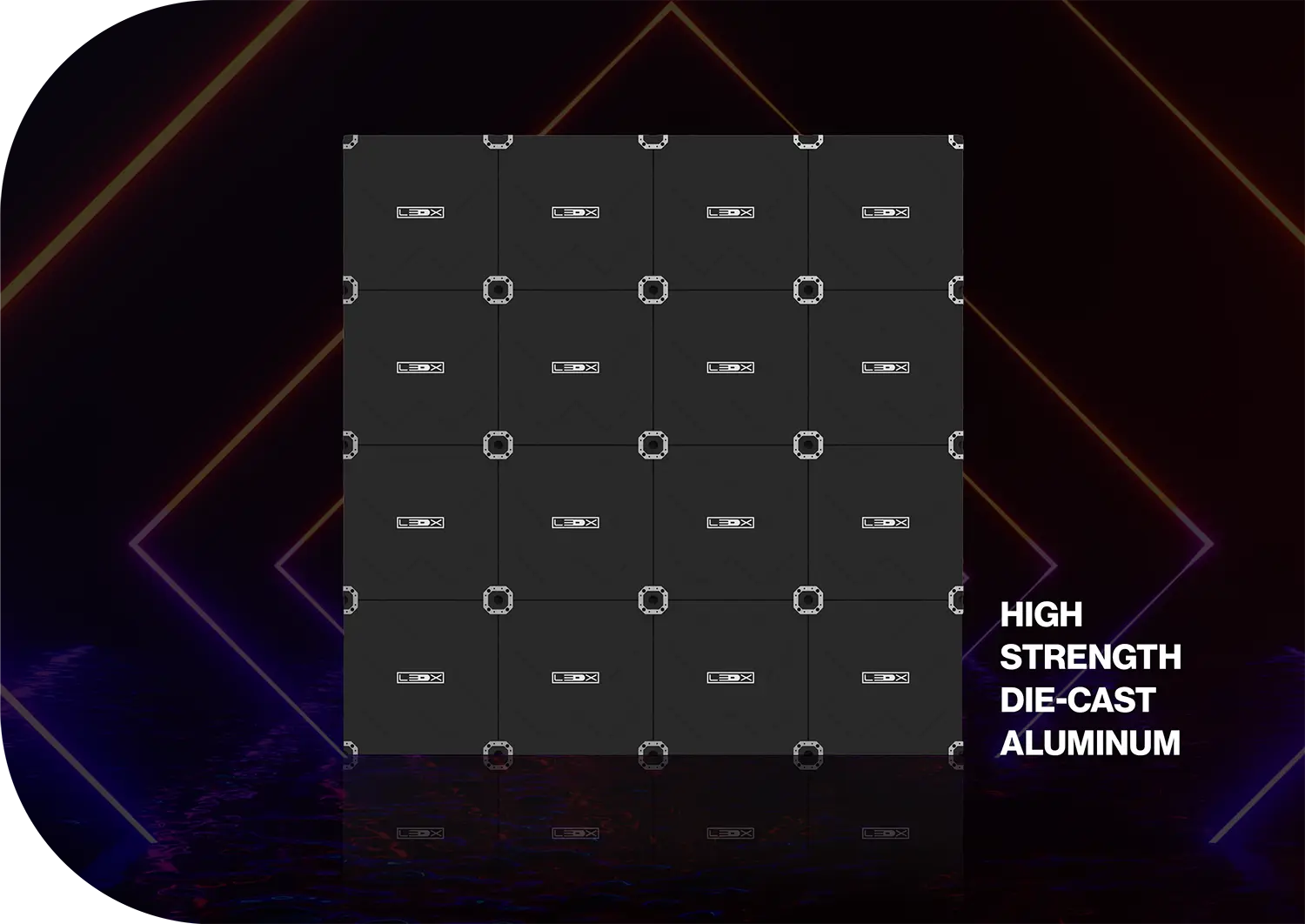

Perfect Flatness
Crafted from high-strength die-cast aluminum, these displays ensure exceptional durability and high surface flatness.
Advanced Moisture Protection
Nano-coating technology shields the LED surface, protecting it effectively against moisture and humidity.

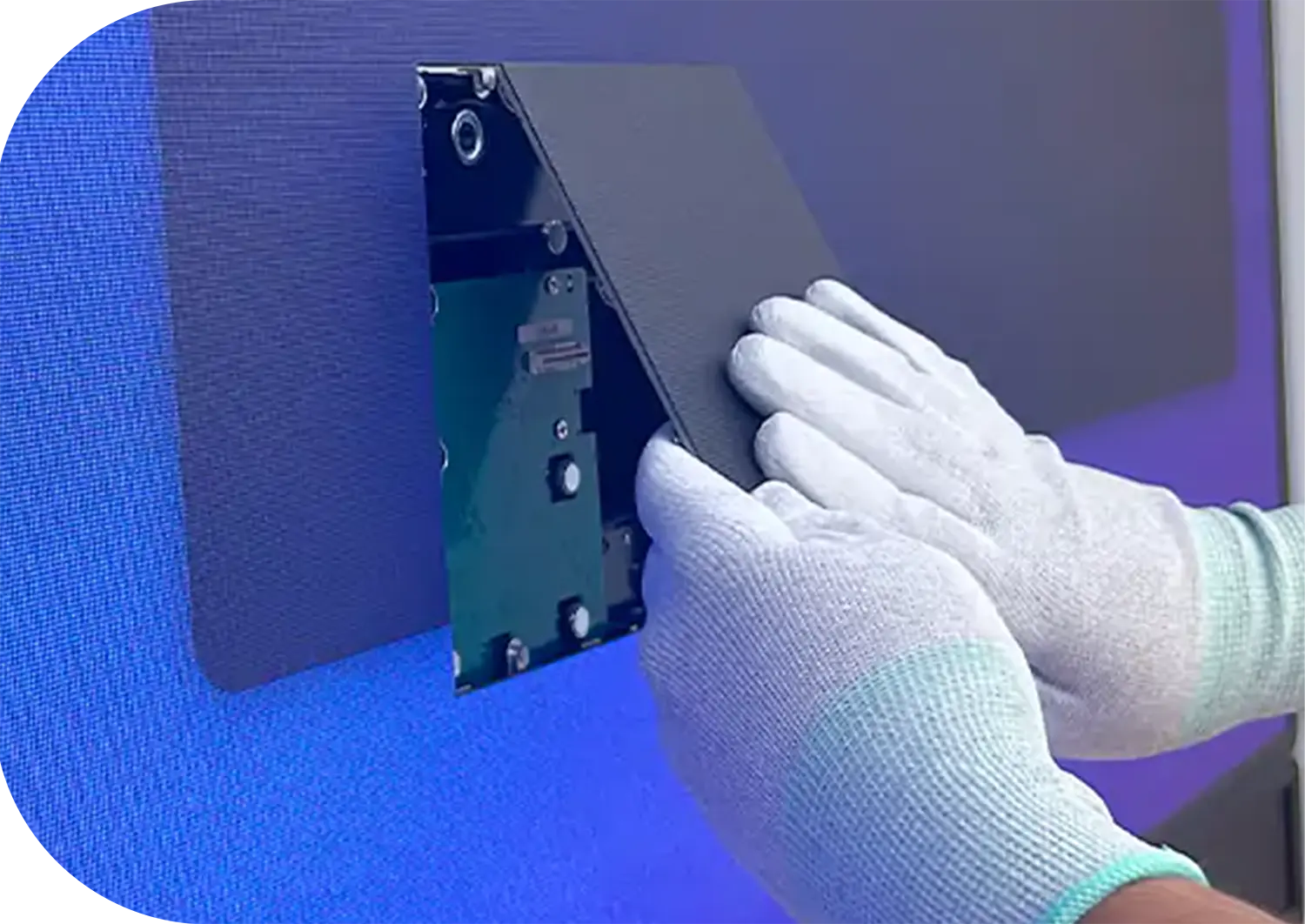

Easy Service & Maintenance
Cable-free modules ensure easy and efficient maintenance. Lightweight design allows quick installation and dismantling, saving you valuable time.

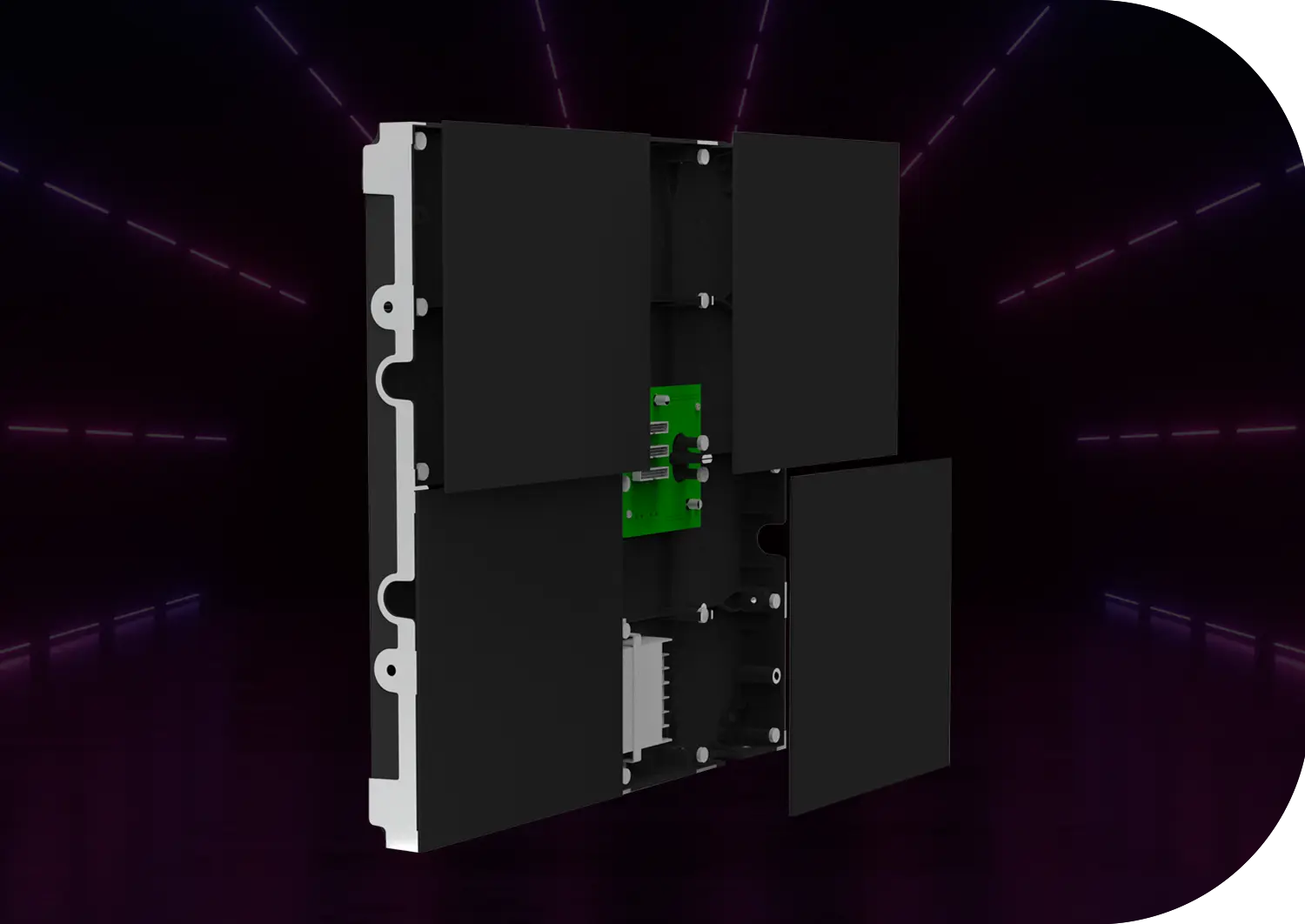

Cable less modules
Cable-less modules- enabling quick, cable-free installation and maintenance. This streamlined design reduces clutter, enhances reliability, and ensures a sleek, seamless visual experience.

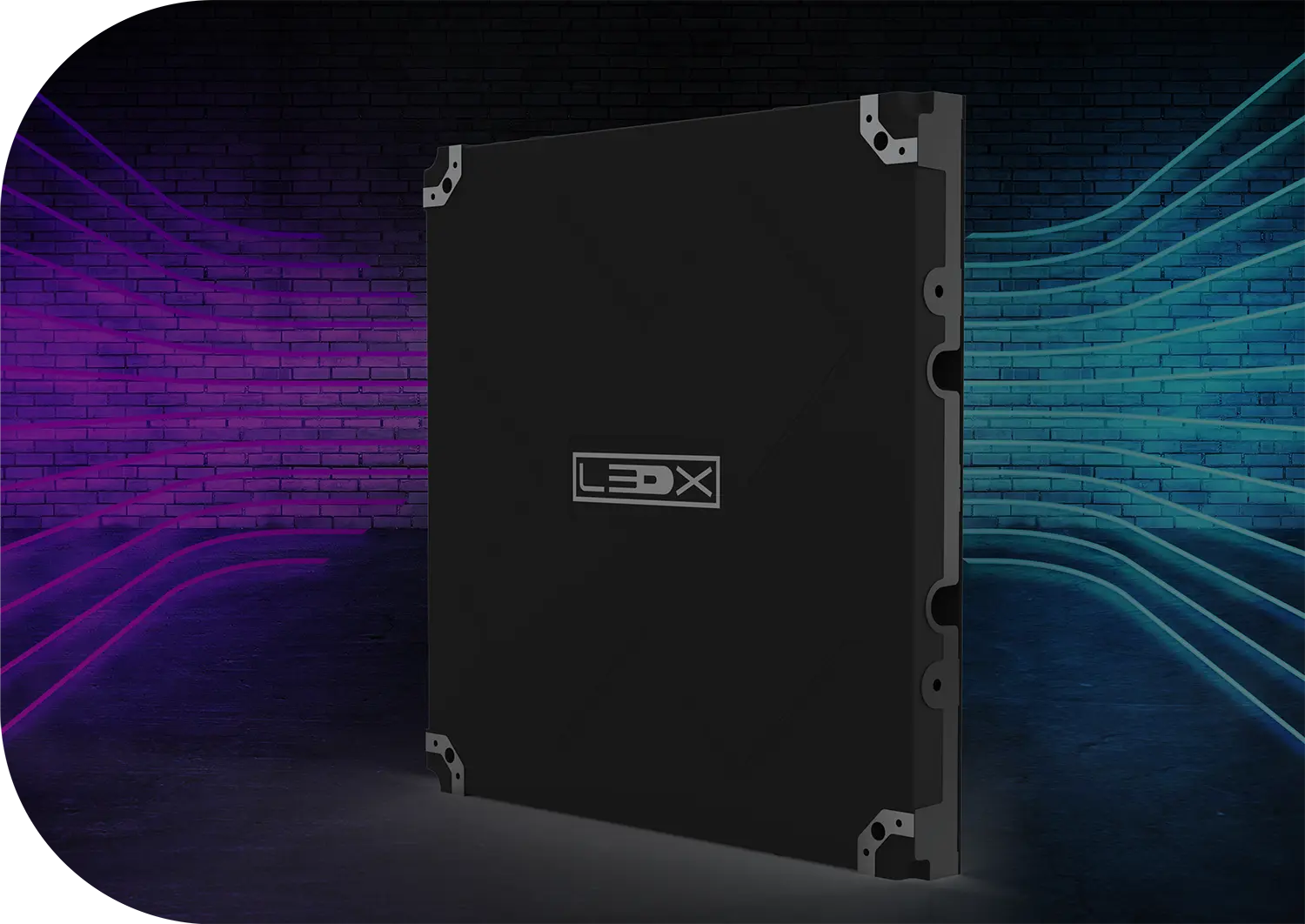

Built for Reliability and Performance
The LXIX series offers great durability and effective heat control, ensuring reliable performance even in challenging conditions.
SPECIFICATIONS
| Model Name | LXIX - 1.83 | LXIX - 2.5 | LXIX - 2.98 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.83 mm | 2.5 mm *Bestseller | 2.98 mm |
| Cabinet Dimension (W x H, mm) | 500 X 500 / 250 X 250 | 500 X 500 / 250 X 250 | 500 X 500 / 250 X 250 |
| Weight (kg/m²) | 20 | 20 | 20 |
| Service Access | Front | Front | Front |
| Maximum Brightness (nits) | 1000 | 1000 | 1000 |
| Viewing Angle | 160 X 160 | 160 X 160 | 160 X 160 |
| Contrast Ratio | 8000:1 | 8000:1 | 8000:1 |
| Max Power (W/m²)* | 580 | 450/580 | 450/580 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 |
| Ingress Protection | Front IP30 / Back IP30 | Front IP30 / Back IP30 | Front IP30 / Back IP30 |
| Cabinet Type | Die-Cast Al | Die-Cast Al | Die-Cast Al |
| Data Processing | 14-16 Bit | 14-16 Bit | 14-16 Bit |
Comes in Multiple variants, standard and high brightness
These specifications are standard and can be customized. May change without prior notice.
