ES INDOOR - LXIN SERIES

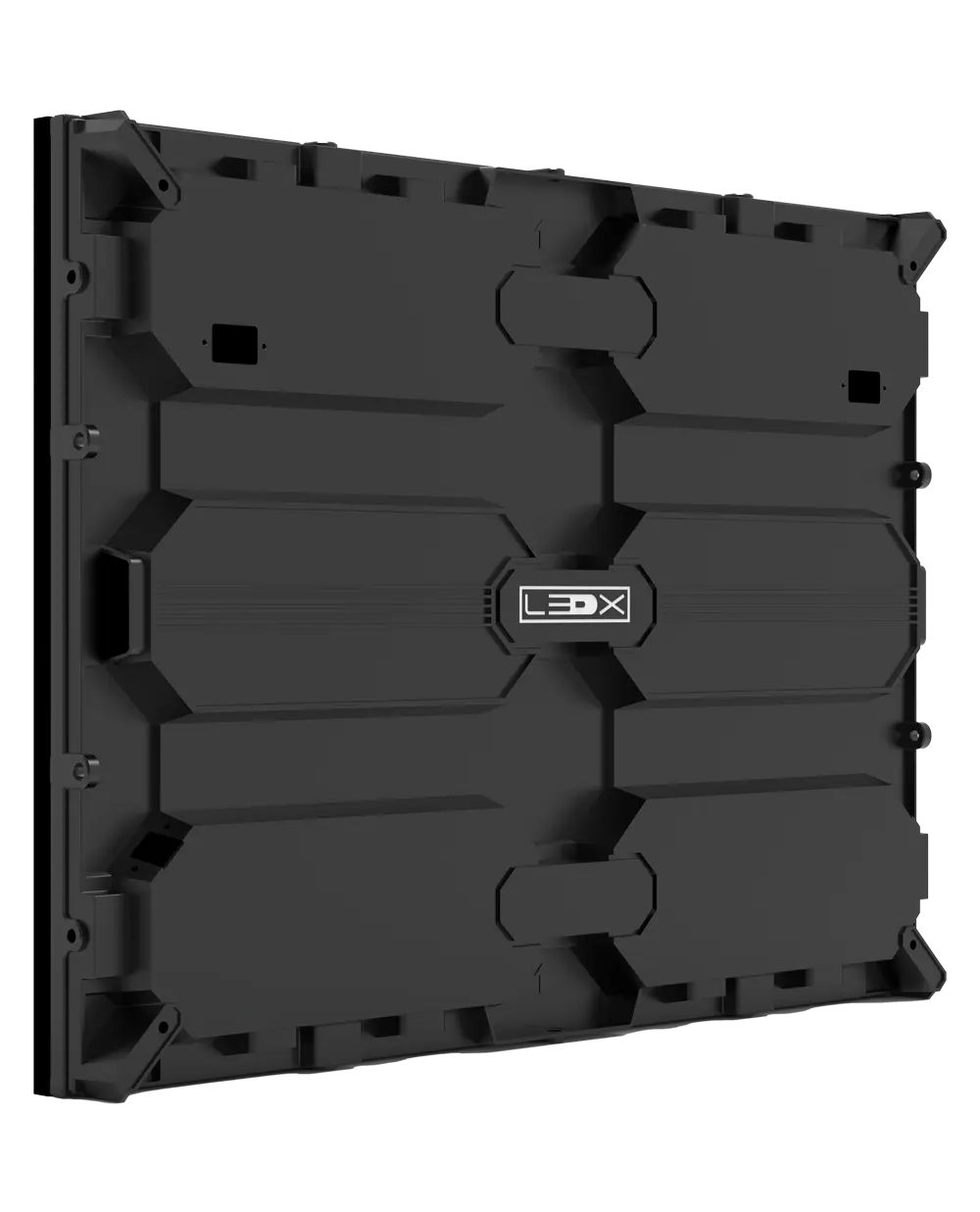

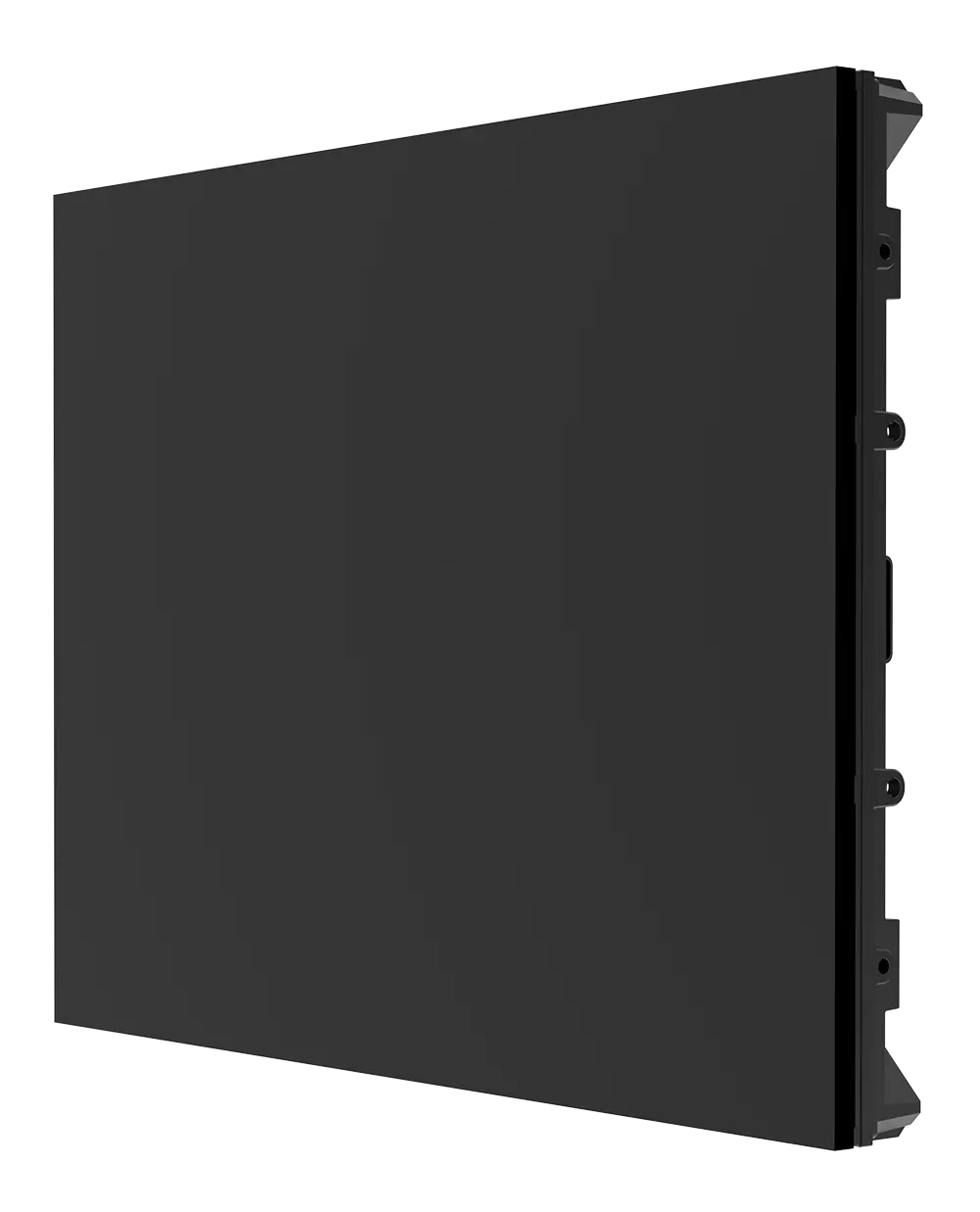

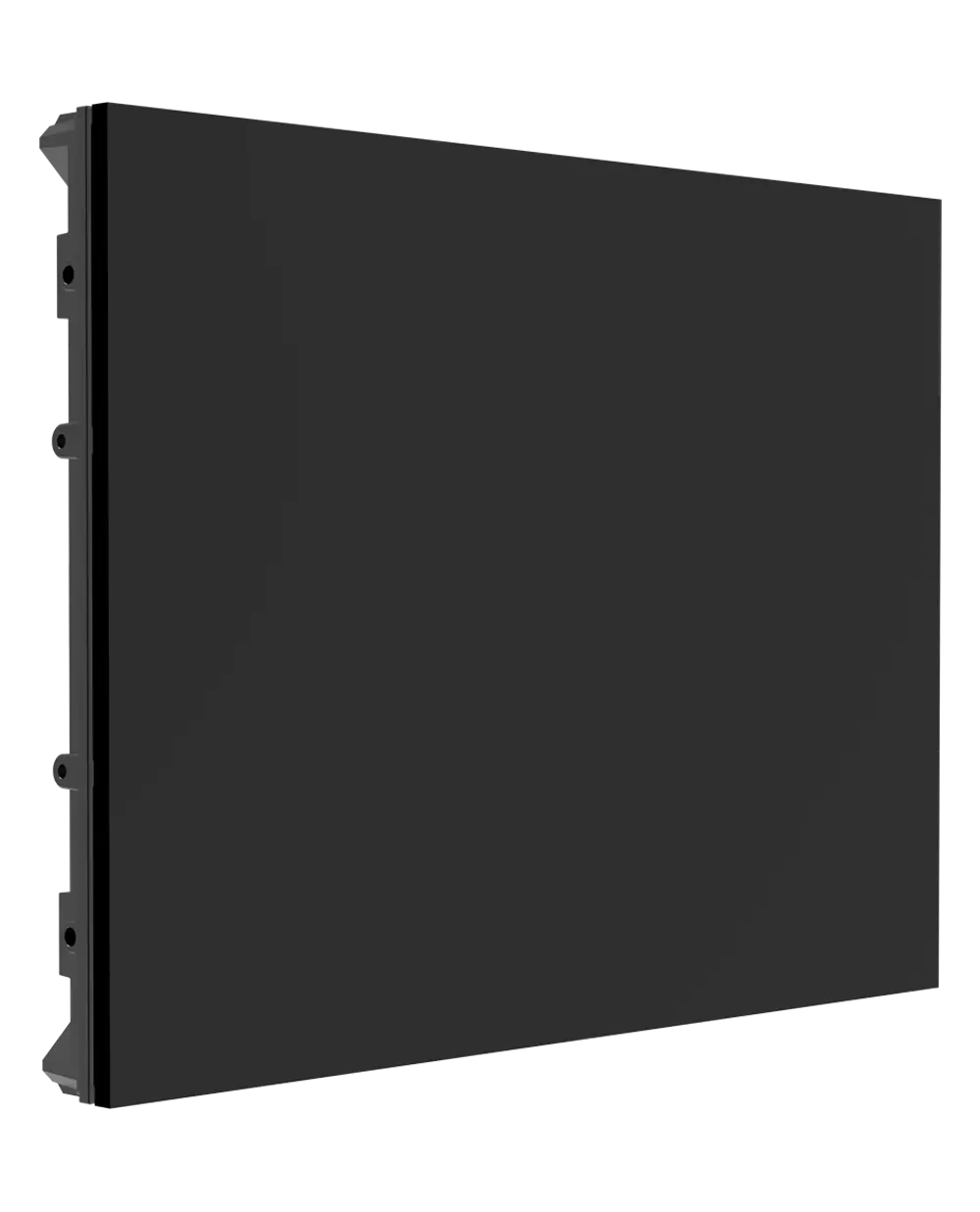

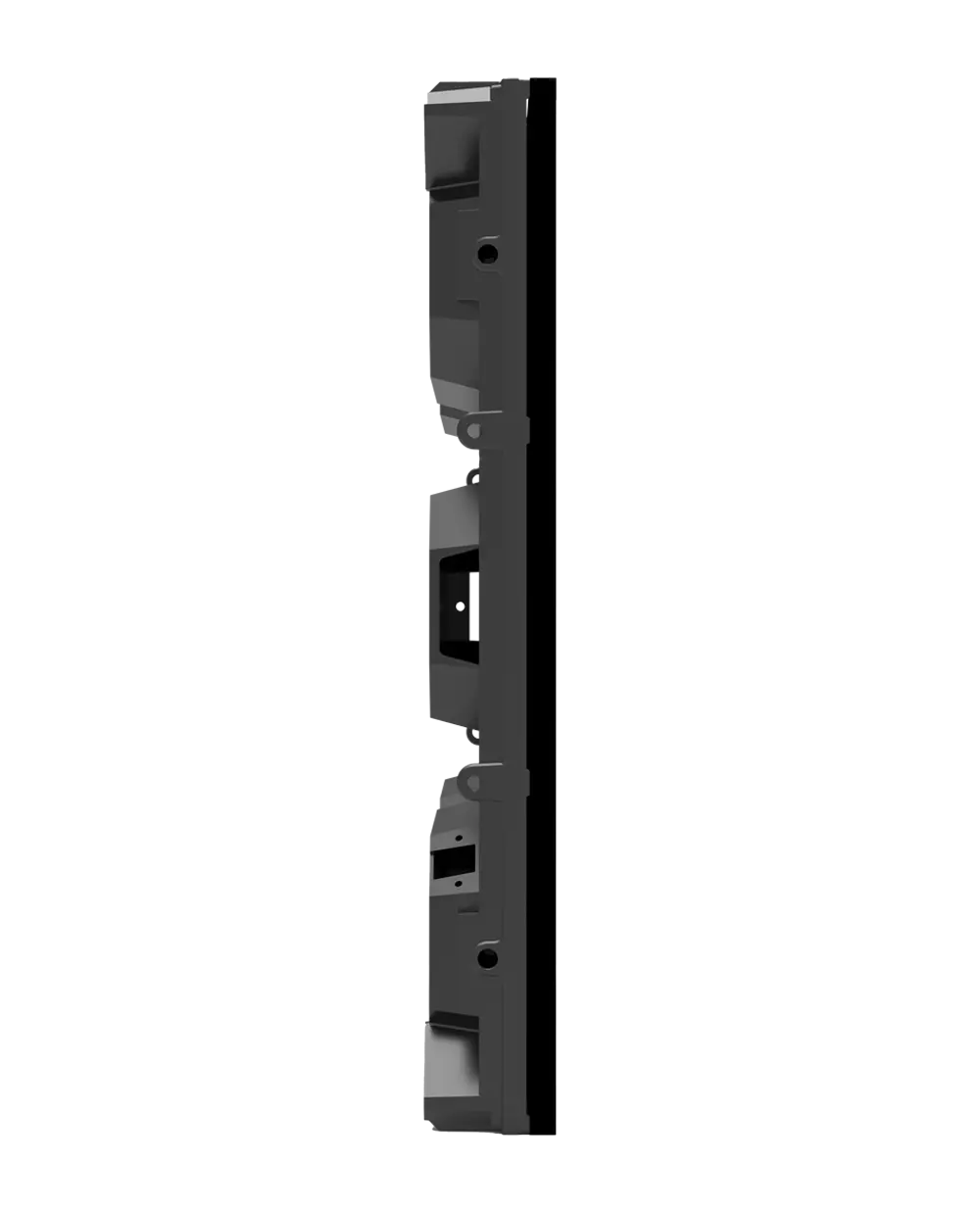

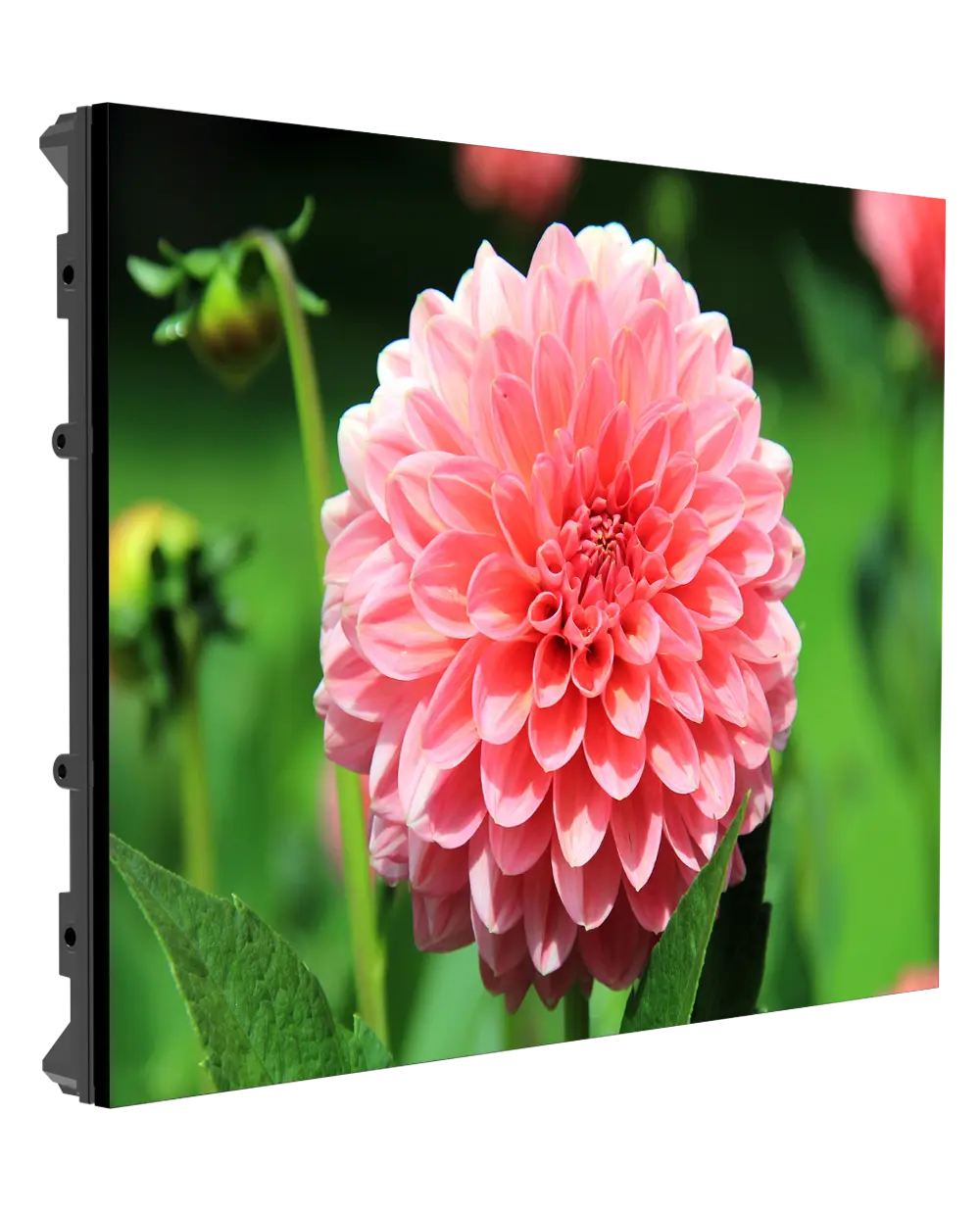

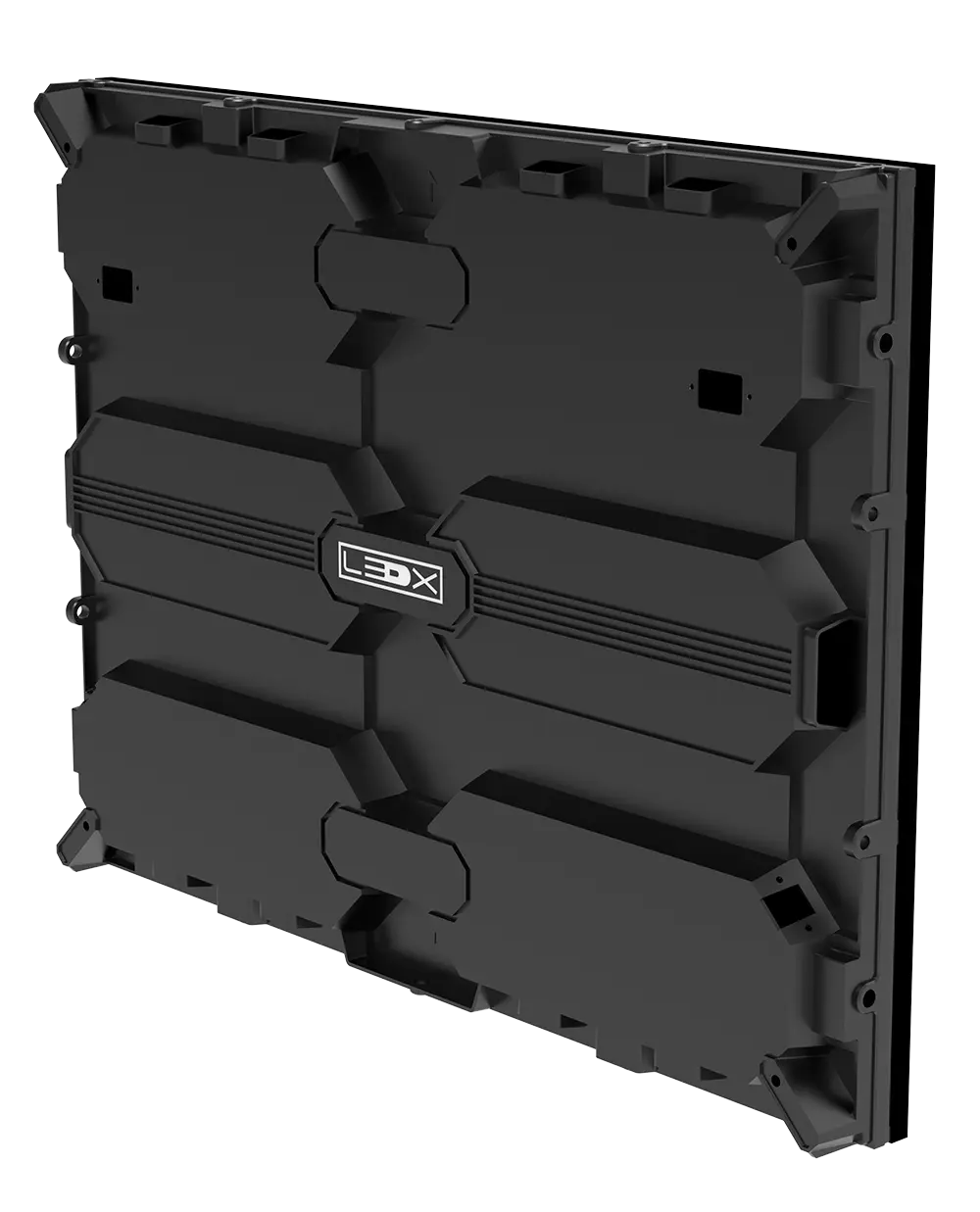

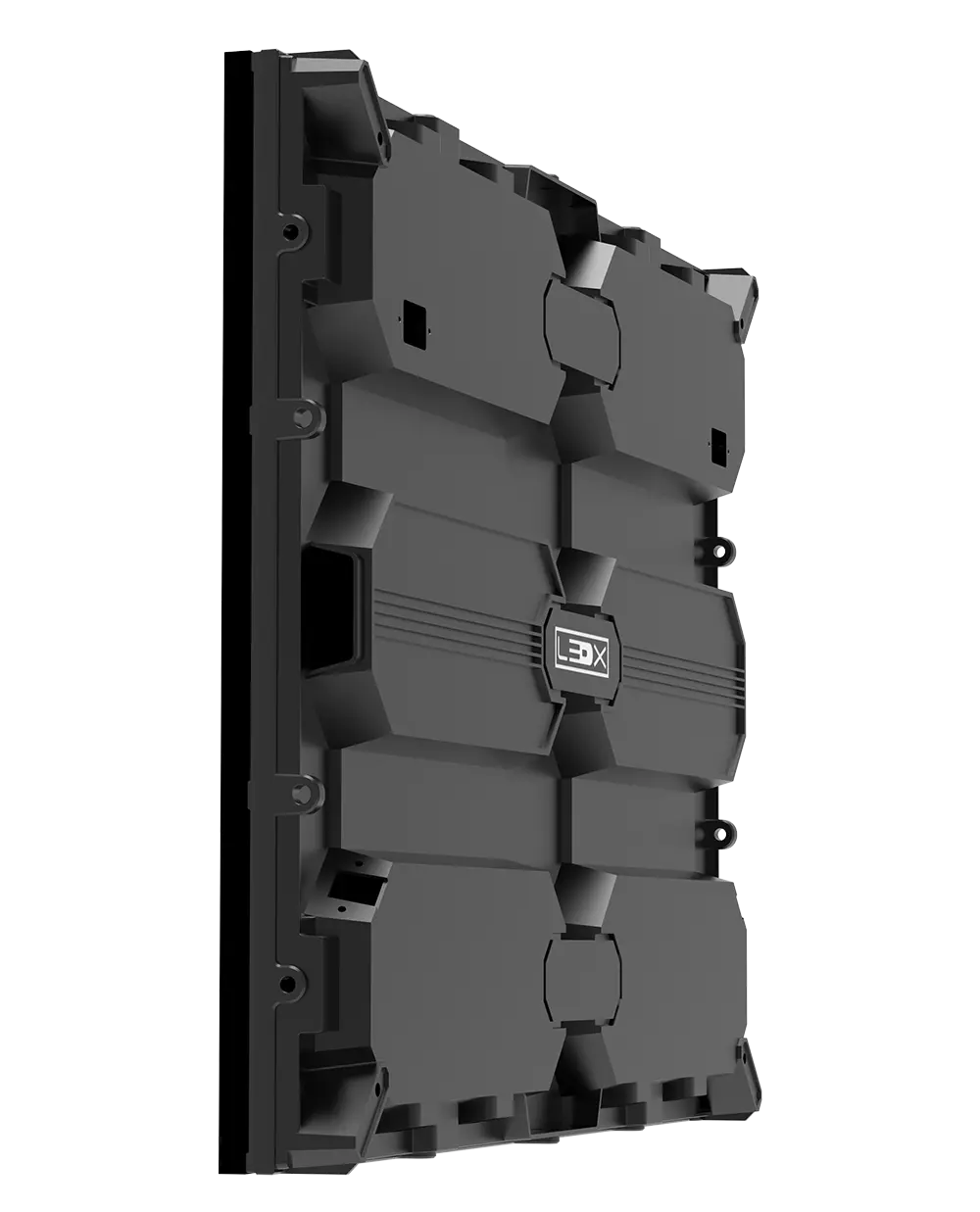

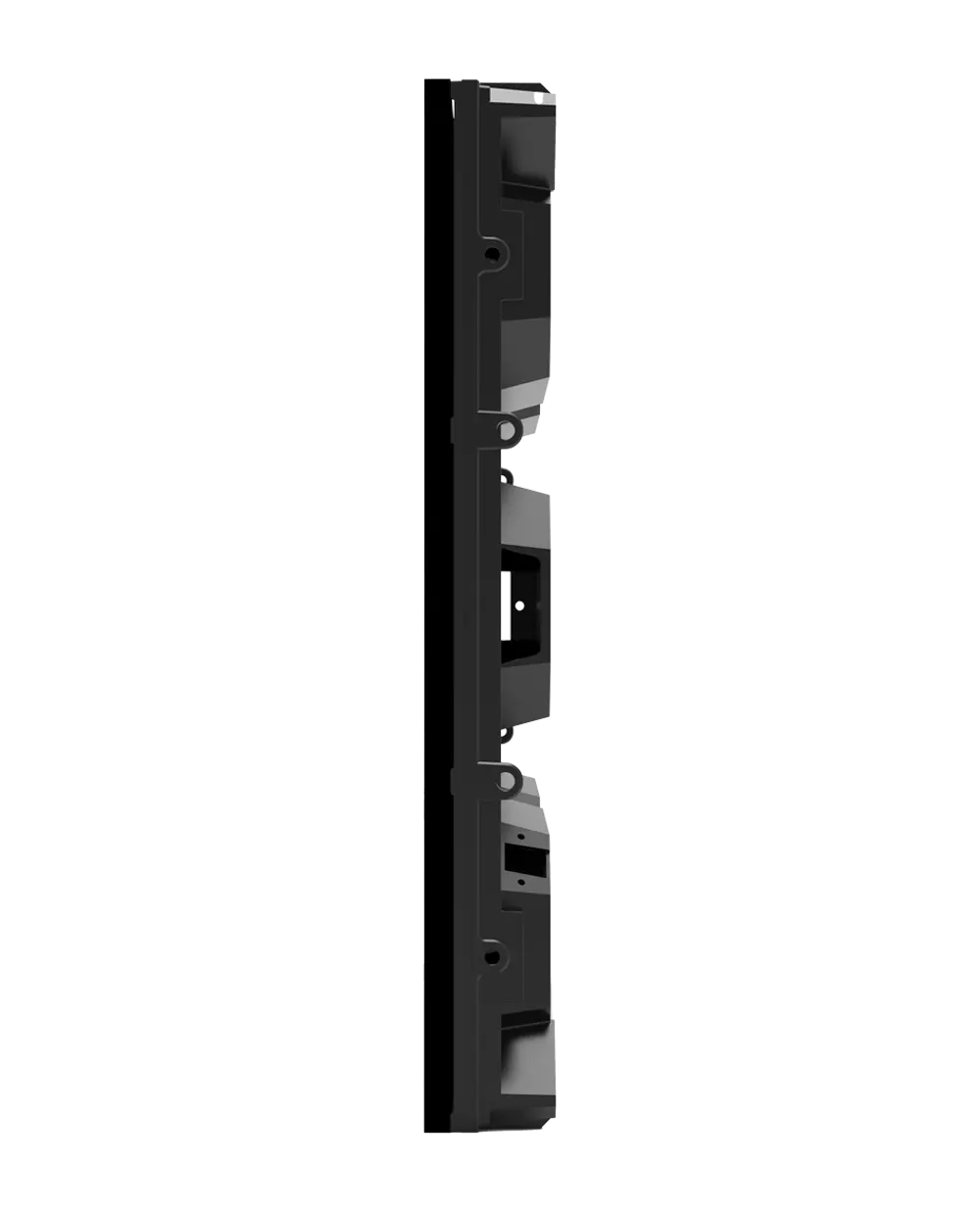

LXIN SERIES
- Value Engineered Small Pitch LED Displays
- Dimension: 640 x 480mm
- Pixel Pitch: 1.86mm, 2.5mm
- Fine pixel pitch
- Moisture protection
- Consistent Quality Assurance
- Great value for money

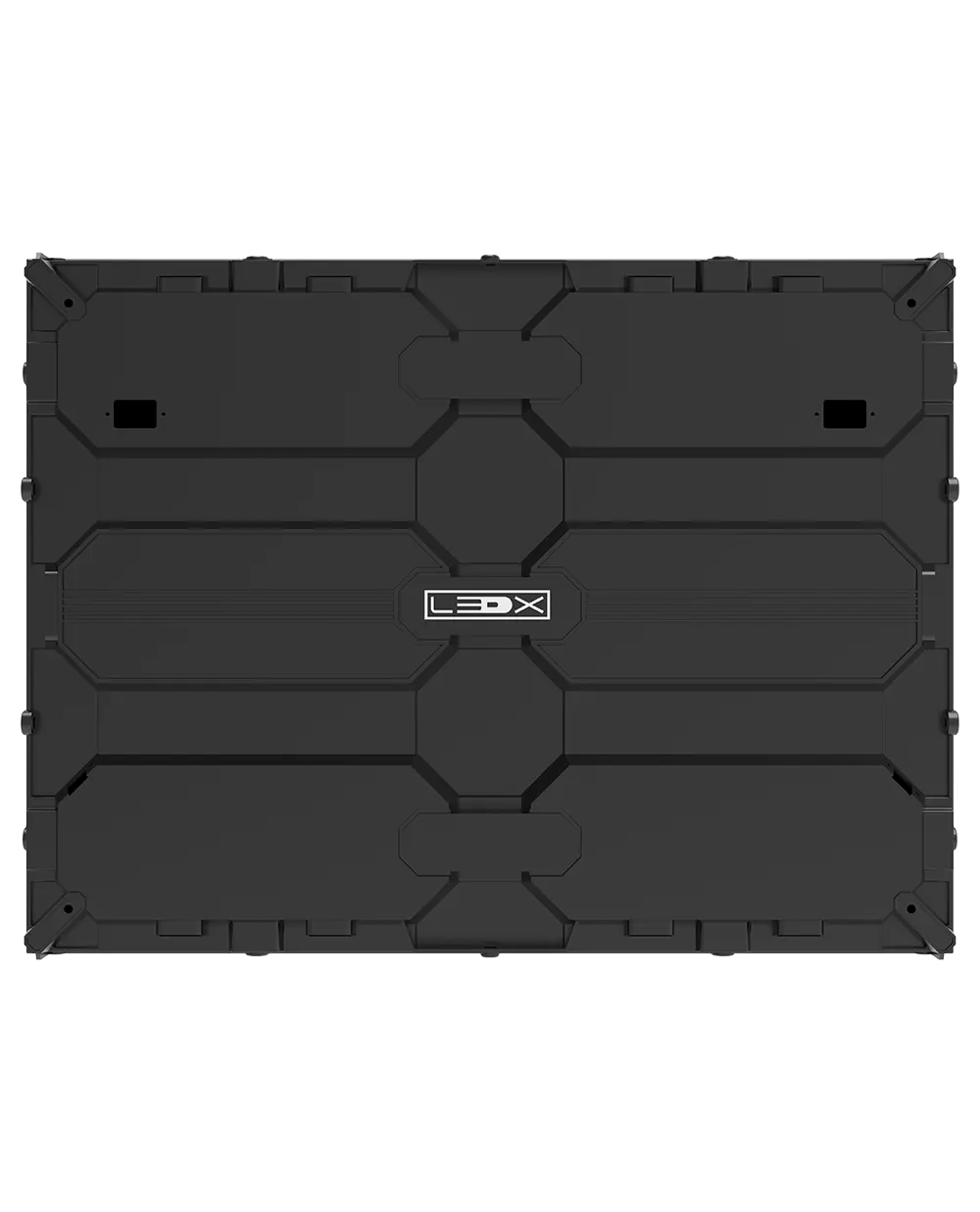

- Cabinet-less Design
Economies of Scale
Mass-produced to deliver exceptional value for bulk installations.

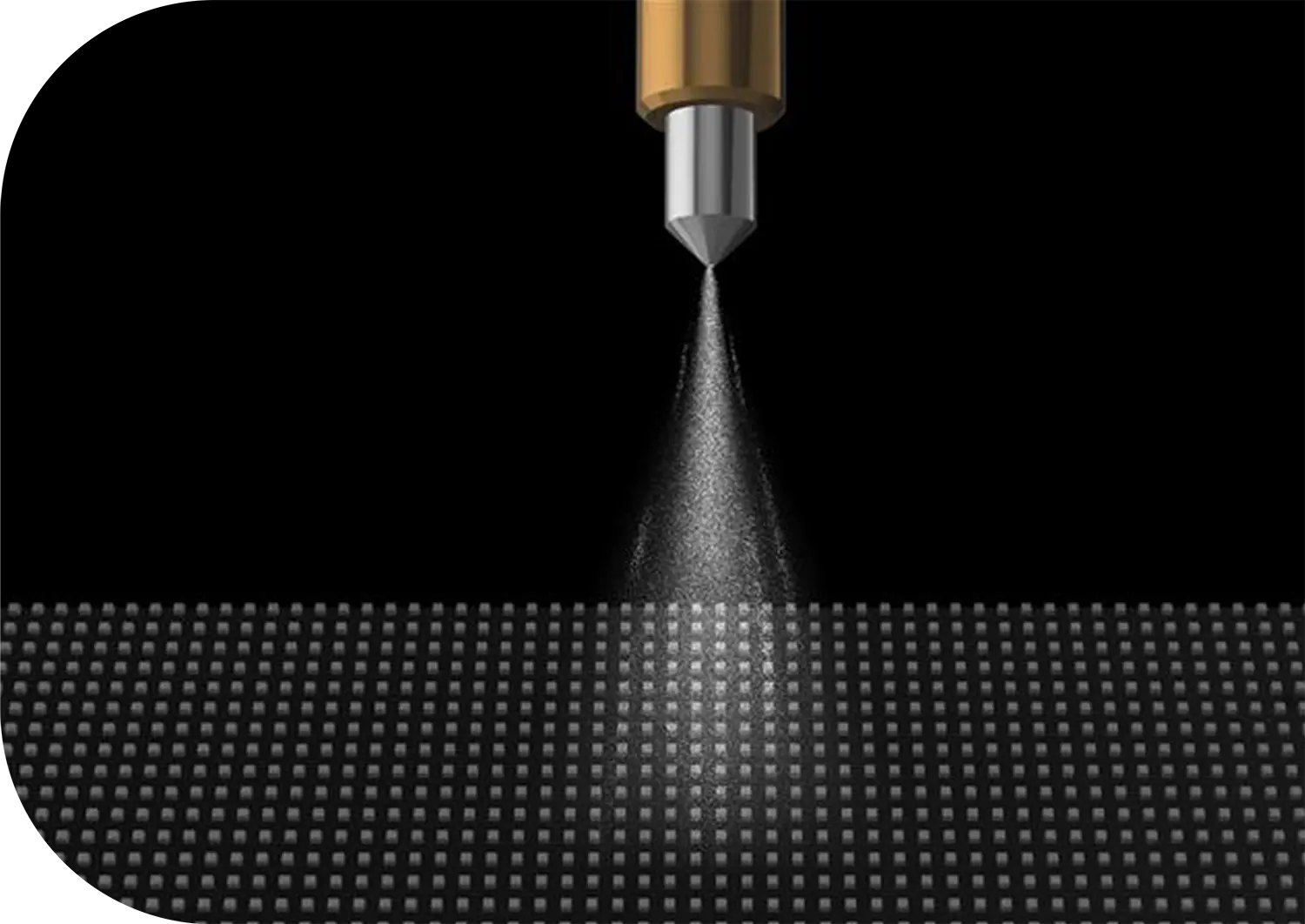

Advanced Moisture Protection
Nano-coating technology shields the LED surface, protecting it effectively against moisture and humidity.

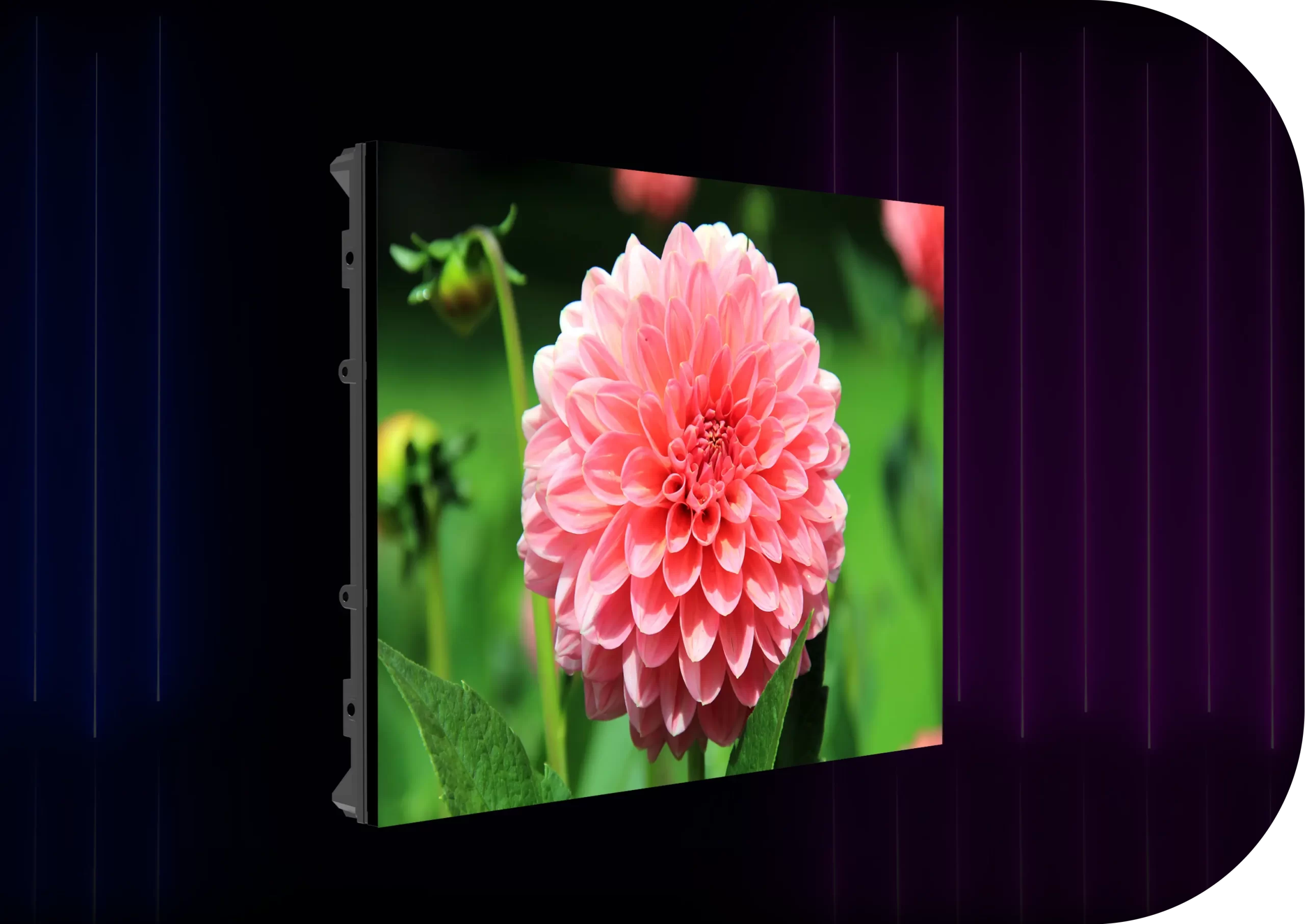

Value Engineered
Optimized cost structure ensures superior quality at competitive pricing.
Consistent Quality Assurance
Large-scale manufacturing ensures reliability, consistency, and durability across all units.

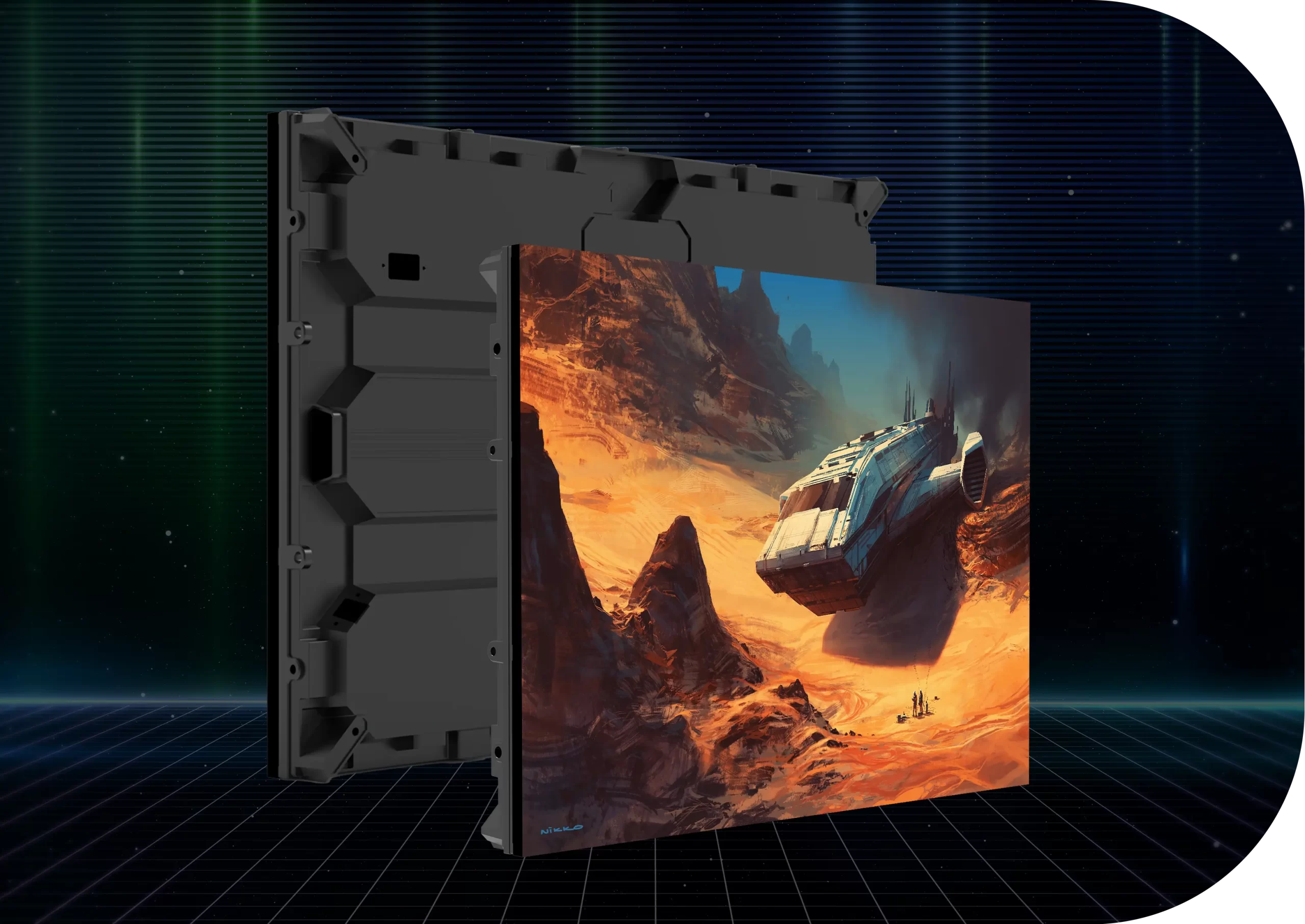

Small Pitch, Big Impact
Offers high visual clarity with fine pixel pitch for detailed viewing.

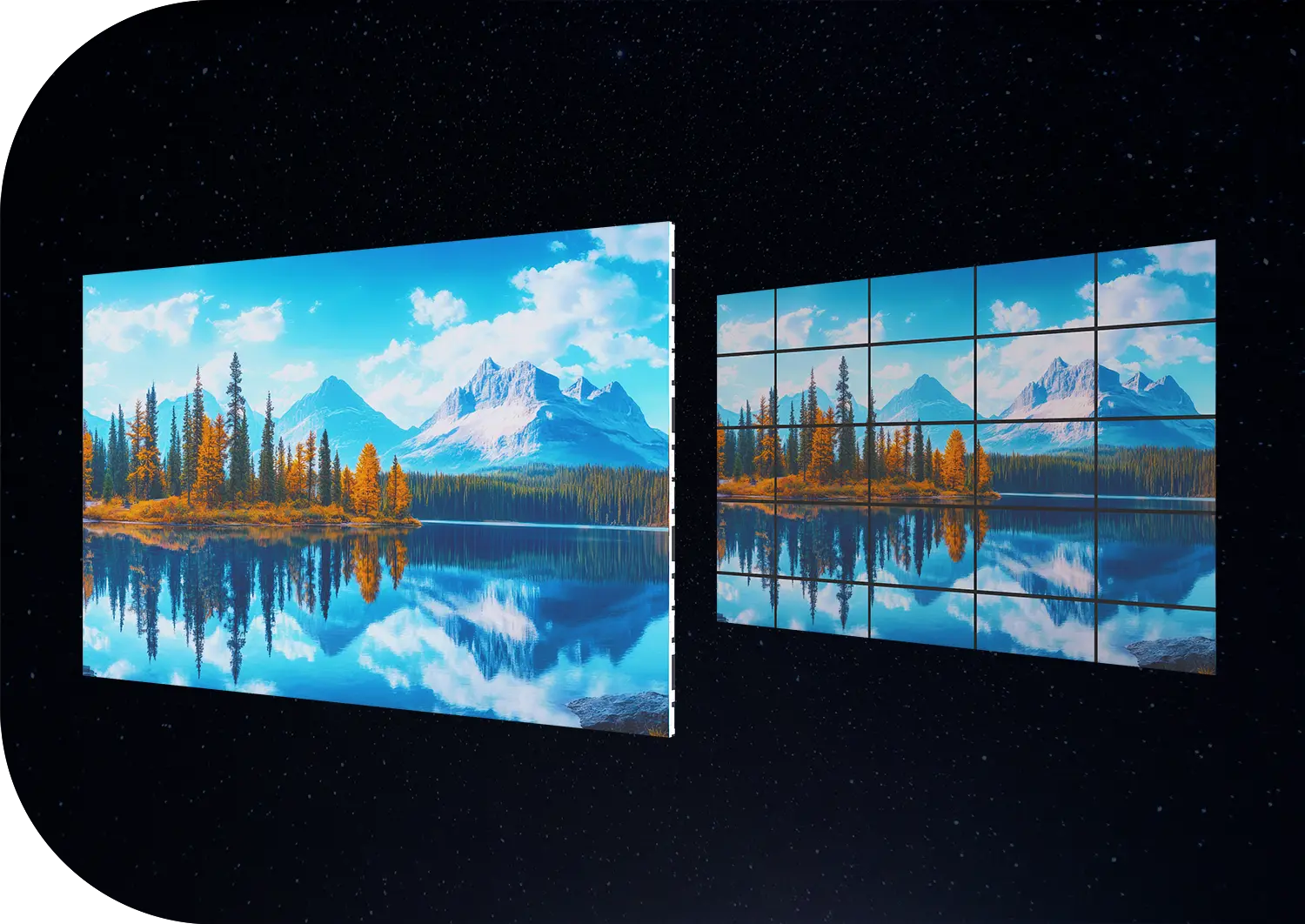

Panel Videowall Replacement
Seamlessly upgrades traditional video walls with enhanced visuals and hassle-free installation.
SPECIFICATIONS
| Model Name | LXIN - 1.53 | LXIN - 1.86 | LXIN - 2 | LXIN - 2.5 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.53 mm | 1.86 mm | 2 mm | 2.5 mm |
| Cabinet Dimension (W x H x D, mm) | 640 x 480 x 67 | 640 x 480 x 67 | 640 x 480 x 67 | 640 x 480 x 67 |
| Weight (kg/m²) | 8 | 8 | 8 | 8 |
| Service Access | Front | Front | Front | Front |
| Max Brightness (nits) | 600 | 600 | 600 | 600 - 700 |
| Viewing Angle | 160 x 160 | 160 x 160 | 160 x 160 | 160 x 160 |
| Contrast Ratio | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 |
| Max. Power (Watts/m²) | 650 | 650 | 500 | 500 |
| Refresh Rate (Hz) | 1920 | 1920 | 1920 | 1920 |
| Ingress Protection | Front IP20 / Back IP20 | Front IP20 / Back IP20 | Front IP20 / Back IP20 | Front IP20 / Back IP20 |
| Cabinet Type | Die-Cast Al | Die-Cast Al | Die-Cast Al | Die-Cast Al |
| Data Processing | 14-16 Bit | 14-16 Bit | 14-16 Bit | 14-16 Bit |
Comes in Multiple variants, standard and high brightness
These specifications are standard and can be customized. May change without prior notice.
